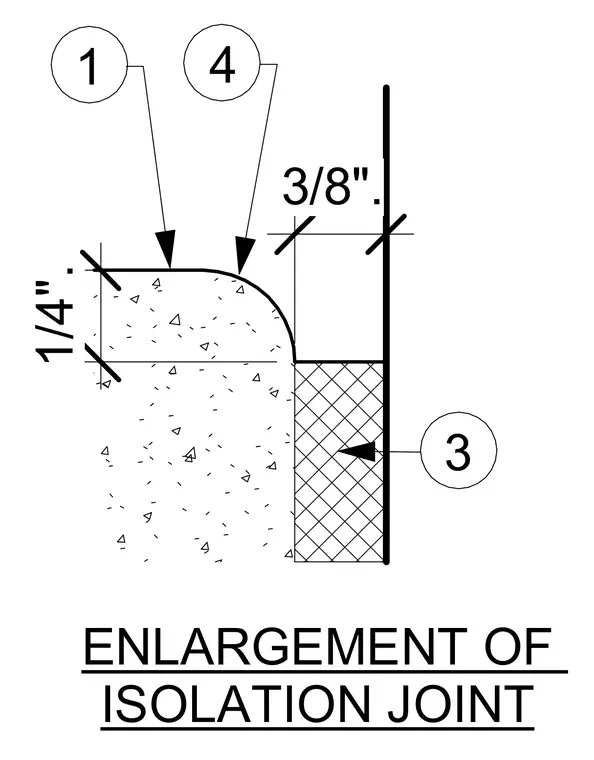

An isolated concrete edge transitions across a joint gap filled with resilient material. The edge features a rounded profile with a one-quarter-inch vertical dimension and a three-eighths-inch horizontal gap spacing. Callout numbers identify the specific joint components and dimensional tolerances.
1/4". 3/8". ENLARGEMENT OF ISOLATION JOINT 1 4 3
