Irrigation Trench and Pipe Sleeving Under Paving

Elements

About this detail

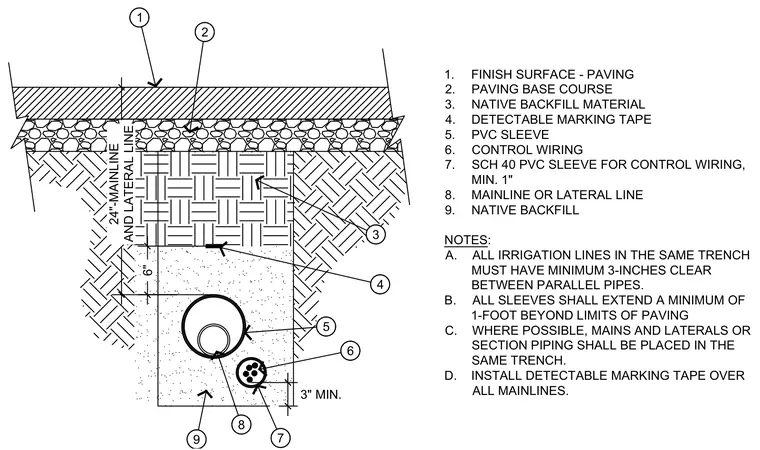

An underground trench runs beneath a finish paving surface and paving base course, backfilled with native backfill material. A schedule 40 polyvinyl chloride sleeve of minimum one-inch diameter houses control wiring, positioned alongside mainline or lateral irrigation lines inside a protective polyvinyl chloride sleeve. A detectable marking tape is installed horizontally in the trench above the utility lines. All irrigation lines within the same trench maintain a minimum three-inch clearance between parallel pipes, with the mainline and lateral lines placed twenty-four inches below the finished surface.
