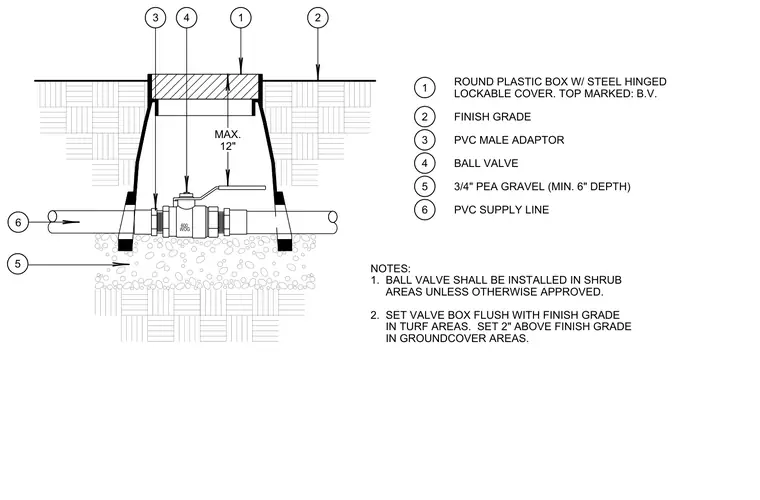

A 600 WOG ball valve is spliced into a PVC supply line using PVC male adaptors and set within a maximum 12-inch deep round plastic box with a steel hinged lockable cover marked B.V. The entire assembly rests on a minimum 6-inch depth of 3/4-inch pea gravel for drainage. The ball valve shall be installed in shrub areas unless otherwise approved. The valve box must be set flush with the finish grade in turf areas and 2 inches above the finish grade in groundcover areas.
600 WOG 6 5 MAX. 12" ROUND PLASTIC BOX W/ STEEL HINGED LOCKABLE COVER. TOP MARKED: B.V. FINISH GRADE PVC MALE ADAPTOR 1 2 3 BALL VALVE 3/4" PEA GRAVEL (MIN. 6" DEPTH) PVC SUPPLY LINE 6 5 4 NOTES: 1. 2. BALL VALVE SHALL BE INSTALLED IN SHRUB AREAS UNLESS OTHERWISE APPROVED. SET VALVE BOX FLUSH WITH FINISH GRADE IN TURF AREAS. SET 2" ABOVE FINISH GRADE IN GROUNDCOVER AREAS. 3 4 1 2
