Architectural · L-JBAGN

Acoustic Ceiling Tile - Typ Lay In

Materials

Elements

About this detail

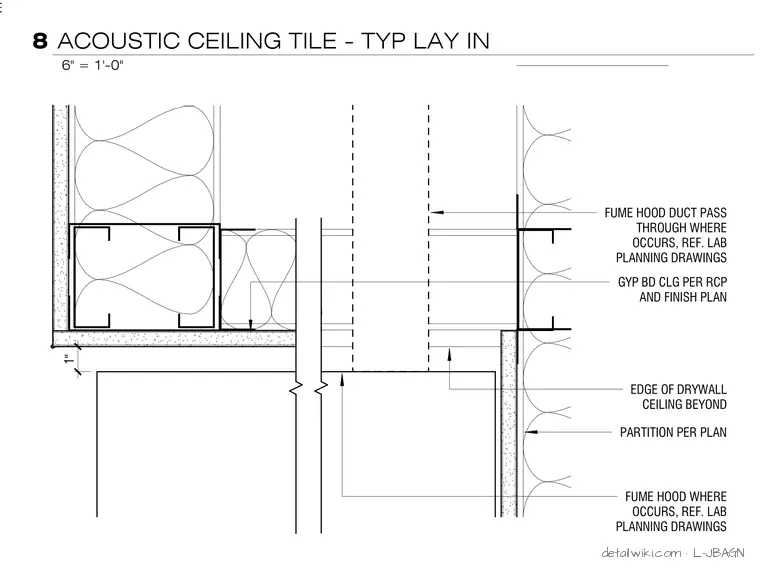

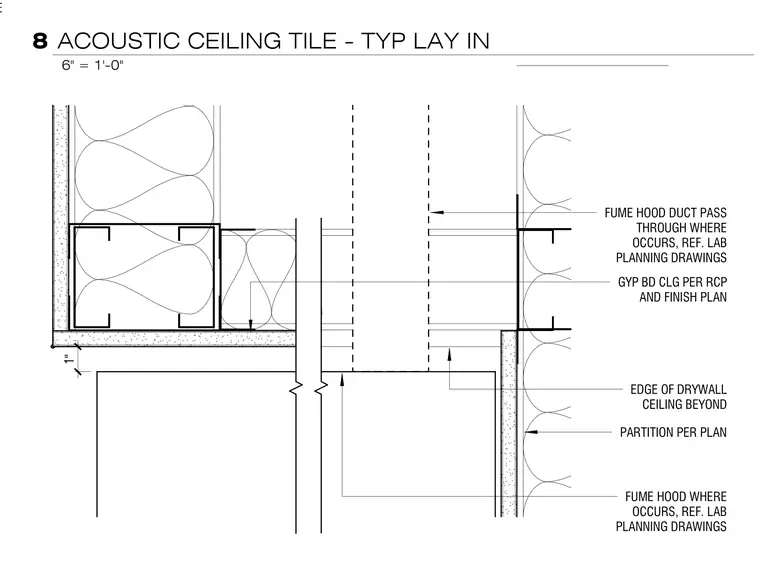

A lay-in acoustic ceiling tile system adjoins a partition per plan, with coordination for a fume hood duct pass-through where required by lab planning drawings. Gypsum board ceiling framing is indicated per the reflected ceiling plan and finish plan, featuring an edge of drywall ceiling beyond and a main tee suspension system. A one-inch lay-in acoustic ceiling tile module abuts the partition, allowing an option for additional ceiling tile above the fume hood area.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
