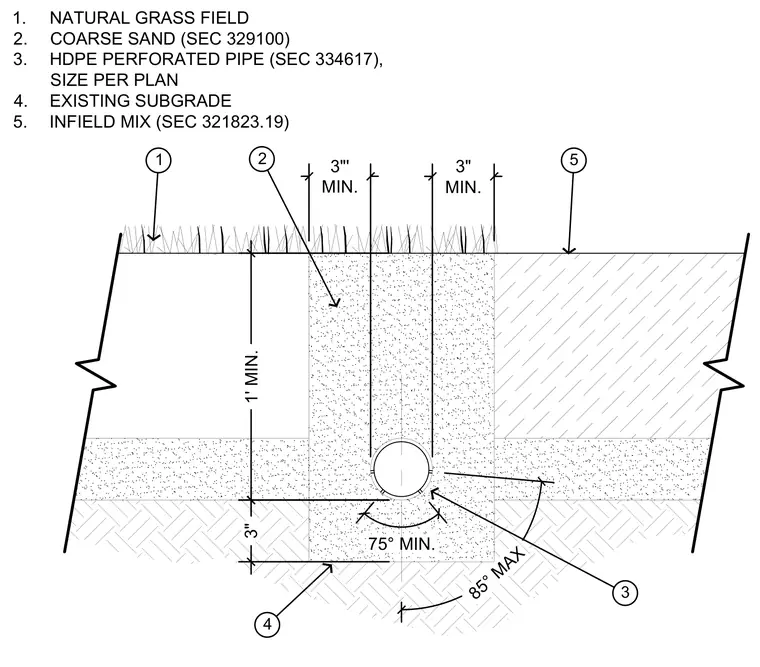

An athletic field subsurface drainage trench is excavated into the existing subgrade and backfilled with coarse sand per section 329100. A high-density polyethylene perforated pipe, sized per plan per section 334617, rests within the sand trench bed with a three-inch minimum clearance above the subgrade. The trench extends upward through the infield mix per section 321823.19 to support the natural grass field surface. Key dimensions include a one-foot minimum trench depth, three-inch minimum clearances to the sides of the pipe, and angular bedding tolerances of seventy-five degrees minimum and eighty-five degrees maximum.
1. NATURAL GRASS FIELD 2. COARSE SAND (SEC 329100) 3. HDPE PERFORATED PIPE (SEC 334617), SIZE PER PLAN 4. EXISTING SUBGRADE 5. INFIELD MIX (SEC 321823.19) 3" 3"' MIN. 3" MIN. 75° MIN. 85° MAX 1' MIN. 2 1 4 3 5
