A pop-up rotor head is set flush with the finish grade and stabilized with one cubic foot of gravel. A three-quarter-inch pre-manufactured swing joint assembly connects the head to a lateral line fitting with a threaded outlet on the lateral piping sized per plan. The swing pipe slopes toward the lateral pipe to allow complete drainage. The top of the head aligns flush with the surrounding turf.

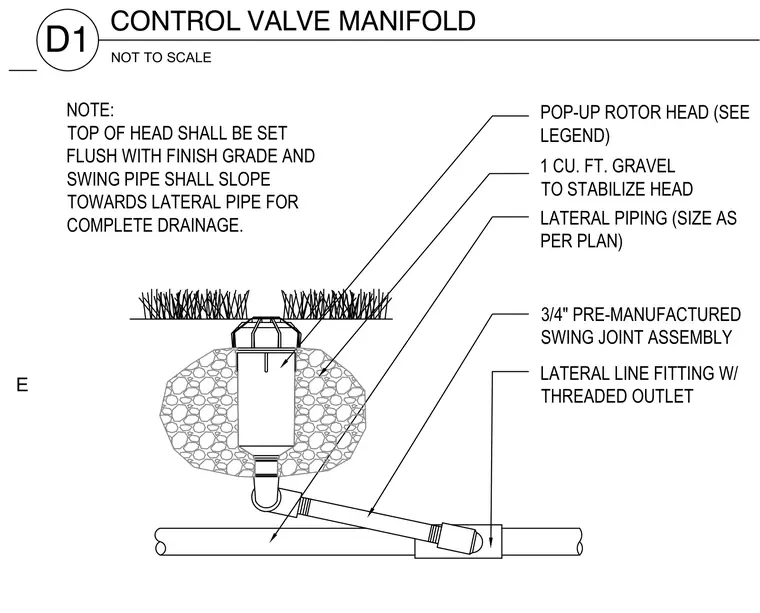

E NOTE: TOP OF HEAD SHALL BE SET FLUSH WITH FINISH GRADE AND SWING PIPE SHALL SLOPE TOWARDS LATERAL PIPE FOR COMPLETE DRAINAGE. 3/4" PRE-MANUFACTURED SWING JOINT ASSEMBLY POP-UP ROTOR HEAD (SEE LEGEND) LATERAL LINE FITTING W/ THREADED OUTLET LATERAL PIPING (SIZE AS PER PLAN) 1 CU. FT. GRAVEL TO STABILIZE HEAD CONTROL VALVE MANIFOLD NOT TO SCALE D1
