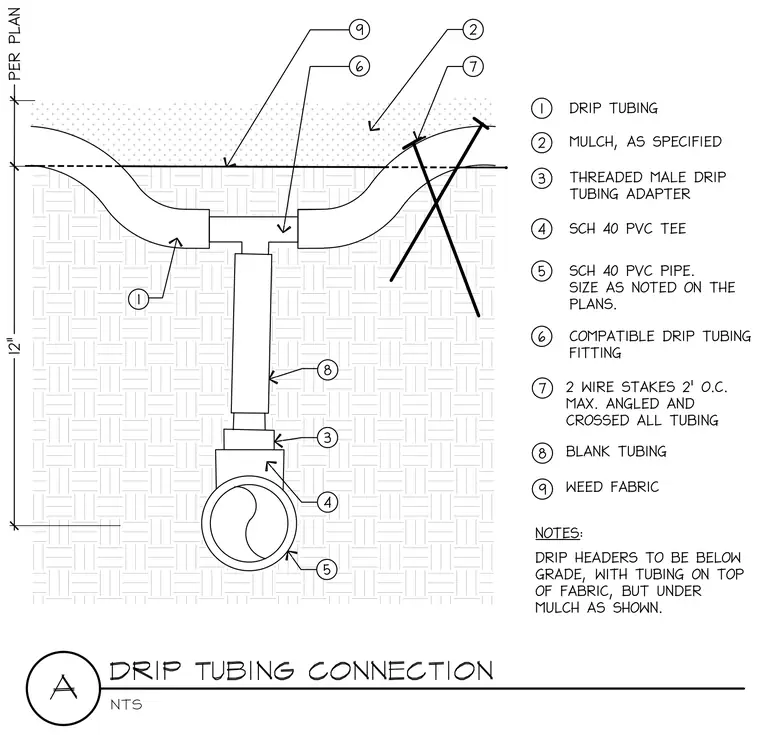

Drip tubing connects to a schedule 40 PVC tee sized per the plans using a threaded male drip tubing adapter, compatible drip tubing fittings, and blank tubing. The assembly sits below grade beneath a layer of weed fabric and specified mulch. Two wire stakes spaced at two feet on center are angled and crossed over the tubing to secure its position. Drip headers are located below grade with tubing resting on top of the fabric but under the mulch.
