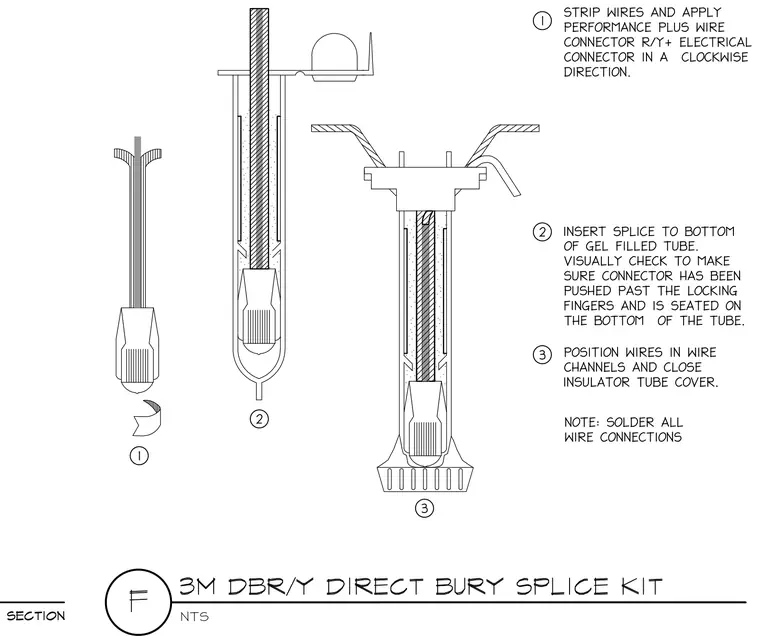

Strip wires and apply performance plus wire connector R/Y+ electrical connector in a clockwise direction. Insert splice to bottom of gel filled tube. Visually check to make sure connector has been pushed past the locking fingers and is seated on the bottom of the tube. Position wires in wire channels and close insulator tube cover. Solder all wire connections.
