Landscape · L-J4W5Q

Boulder Installation in Right of Way Planting Strip

Elements

About this detail

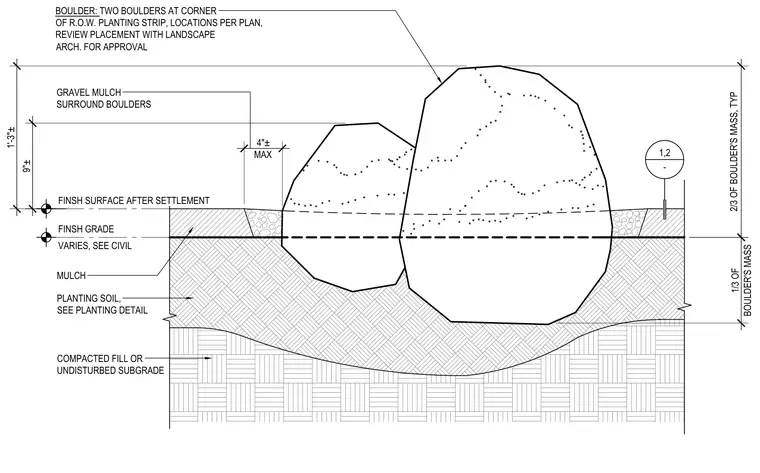

Two boulders are set at the corner of a right-of-way planting strip with two-thirds of their mass buried below finished grade and one-third above. The boulders sit in planting soil over compacted fill or undisturbed subgrade, surrounded by a four-inch maximum gravel mulch ring. Finish grade varies per civil drawings with a finish surface settling to nine inches to one foot three inches below the top of the boulder. Boulder placement requires landscape architect review and approval.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
