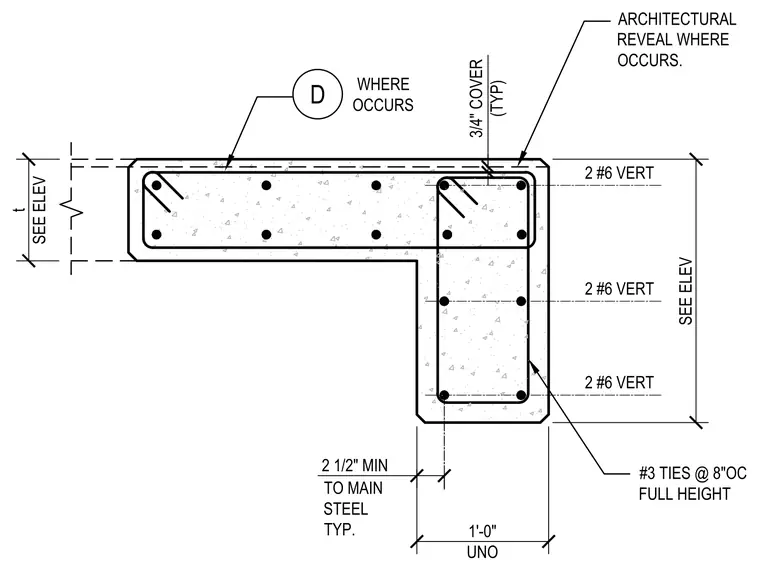

Two number six vertical bars are positioned at each corner face. A three-quarter inch concrete cover is maintained throughout, with an architectural reveal provided where indicated. Number three ties are spaced at eight inches on center for the full height of the wall. A minimum of two and one-half inches is maintained to the main steel, with a one-foot dimension provided for the corner return unless otherwise noted.
Text on the drawing
2 #6 VERT 2 #6 VERT 2 #6 VERT t SEE ELEV D SEE ELEV WHERE OCCURS 3/4" COVER (TYP) ARCHITECTURAL REVEAL WHERE OCCURS.
