Landscape · L-J24JA

Custom Timber Bench at Steel Planter

Materials

Concrete Steel Stainless Steel Timber / Wood

Elements

Floors / Slabs Arches Waterproofing / Flashing Drainage Site / Paving Connections / Plates Roof / Floor Openings

Connections

Gusset Plate

About this detail

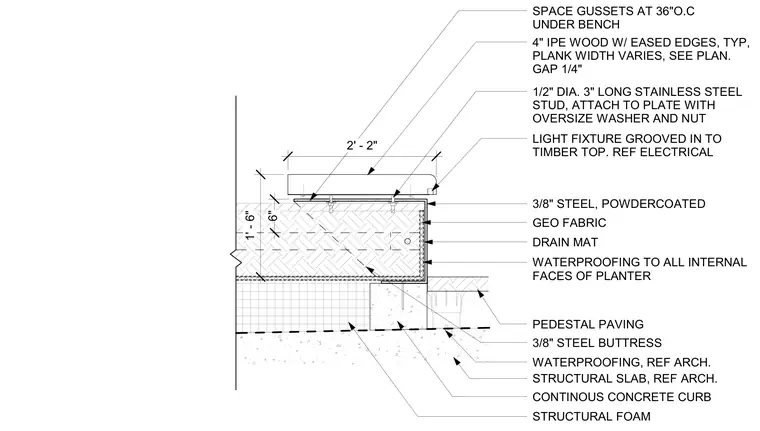

Four-inch IPE wood planks with eased edges are supported by three-eighths-inch powdercoated steel gussets spaced at thirty-six inches on center under the bench. The wood slats attach to the steel plate using one-half-inch diameter by three-inch-long stainless steel studs with an oversize washer and nut, maintaining a quarter-inch gap between planks. A light fixture is grooved into the timber top and coordinated with electrical plans. The steel planter assembly features a three-eighths-inch steel buttress, waterproofing to all internal faces, drain mat, and geo fabric over structural foam and a continuous concrete curb resting on the structural slab.
