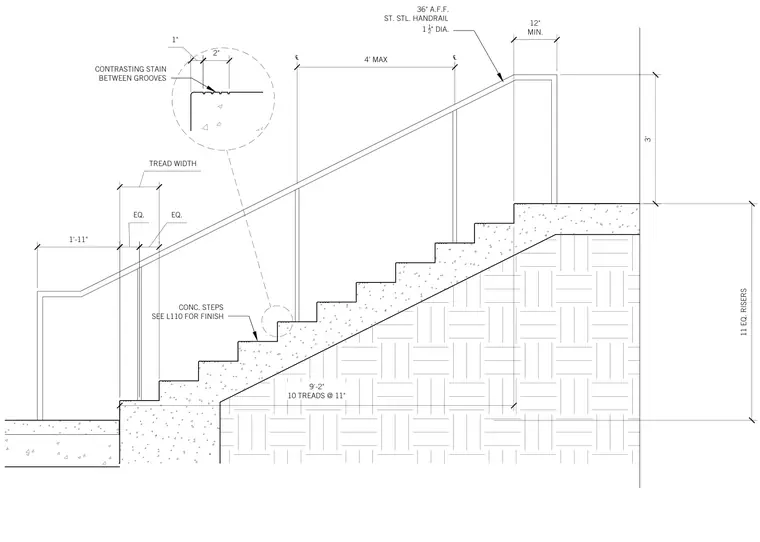

A concrete site stair assembly features ten treads at eleven inches each and eleven equal risers. A one-and-a-half-inch diameter stainless steel handrail is mounted at thirty-six inches above the finished floor with a twelve-inch minimum extension. The concrete steps incorporate contrasting stain between grooves at the tread nosings, detailed in an enlarged inset callout.
12" MIN. 3' EQ. EQ. TREAD WIDTH 4' MAX ℄ ℄ 1'-11" 11 EQ. RISERS 9'-2" 10 TREADS @ 11" 1" 2" CONTRASTING STAIN BETWEEN GROOVES 36" A.F.F. ST. STL. HANDRAIL 1 1 2 " DIA. CONC. STEPS SEE L110 FOR FINISH
