A 600S162-54 cold-formed steel stud brace spans diagonally from a vertical metal stud to a composite concrete deck above, spaced at a maximum of four feet on center. The brace connects to a continuous 400S162-54 backing stud using two number 12 self-tapping metal screws at the lower wall intersection. Additional 600S162-54 stud reinforcement secured with two number 10 self-tapping metal screws at twelve inches on center is required when the brace length exceeds eight feet. The upper connection anchors to the composite concrete deck assembly per engineering details. A one-inch maximum clearance is maintained at the vertical stud framing intersection.

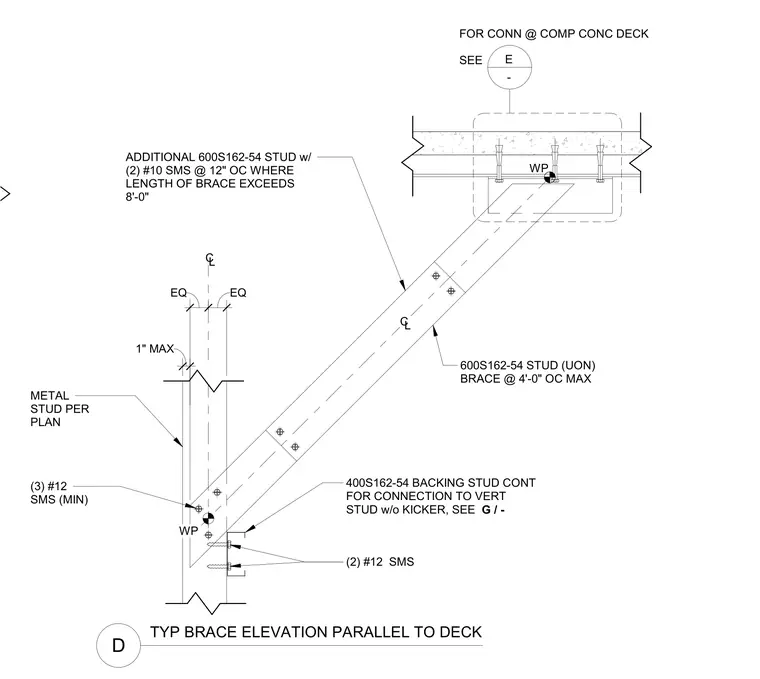

TYP BRACE ELEVATION PARALLEL TO DECK (3) #12 SMS (MIN) 400S162-54 BACKING STUD CONT FOR CONNECTION TO VERT STUD w/o KICKER, SEE G / - METAL STUD PER PLAN WP ADDITIONAL 600S162-54 STUD w/ (2) #10 SMS @ 12" OC WHERE LENGTH OF BRACE EXCEEDS 8'-0" C L C L FOR CONN @ COMP CONC DECK SEE (2) #12 SMS 600S162-54 STUD (UON) BRACE @ 4'-0" OC MAX 1" MAX D WP EQ EQ E -
