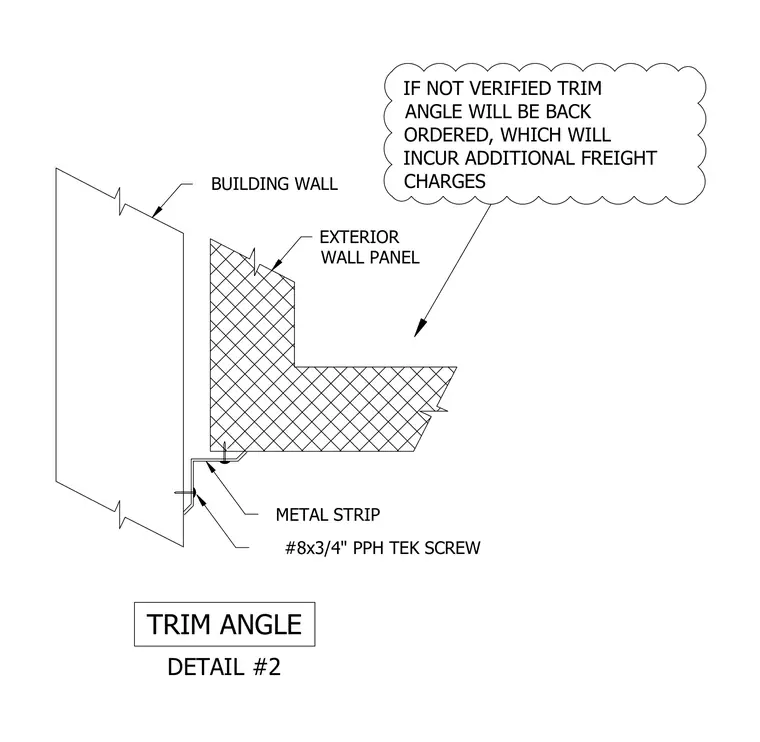

A metal trim angle and metal strip secure an exterior wall panel to the building wall. The assembly is fastened using number eight by three-quarter inch pan head Tek screws.
DETAIL #2 TRIM ANGLE METAL STRIP #8x3/4" PPH TEK SCREW BUILDING WALL EXTERIOR WALL PANEL IF NOT VERIFIED TRIM ANGLE WILL BE BACK ORDERED, WHICH WILL INCUR ADDITIONAL FREIGHT CHARGES
