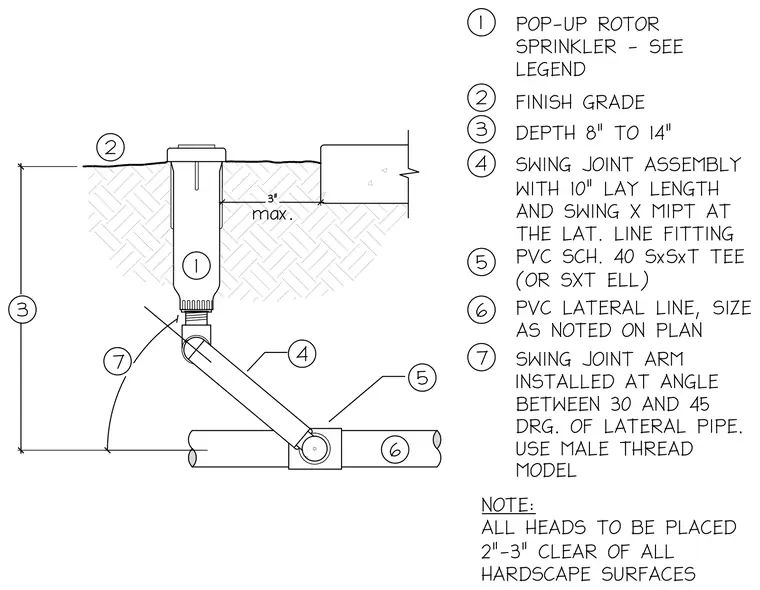

A pop-up rotor sprinkler connects to a PVC lateral line using a swing joint assembly installed at an angle between 30 and 45 degrees from the lateral pipe. The sprinkler head sits flush with the finish grade and maintains a 3-inch maximum clearance from hardscape surfaces. The assembly utilizes a PVC schedule 40 tee or ell fitting and a swing joint arm with a 10-inch lay length. Burial depth ranges from 8 inches to 14 inches below finish grade.
