A wind girt attaches to an exterior cold-formed steel stud wall utilizing a quarter-inch bent plate welded to the steel beam and fastened to a slide clip. The wind beam, sized per plan, connects to a TSN Verticlip SLB fastened with manufacturer-specified screws filling all slots. A one-quarter-inch fillet weld secures the bent plate to the top flange of the beam. Utility punches in the stud must be located a minimum of ten inches away from the connection. One row of bridging is required within twelve inches of the clip.

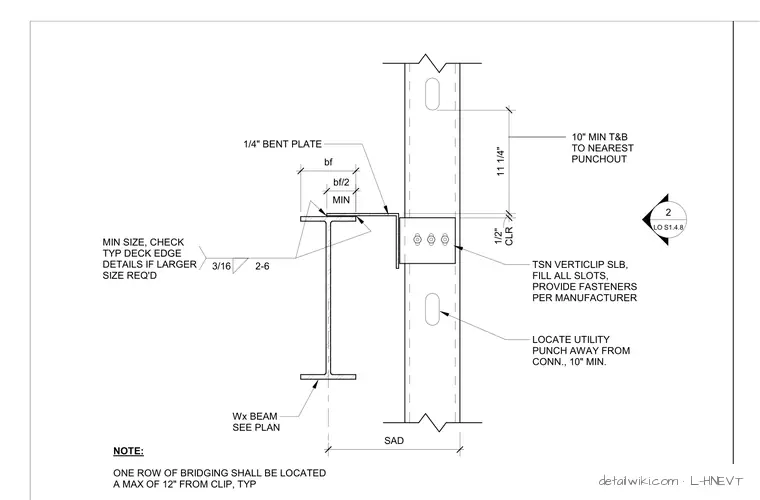

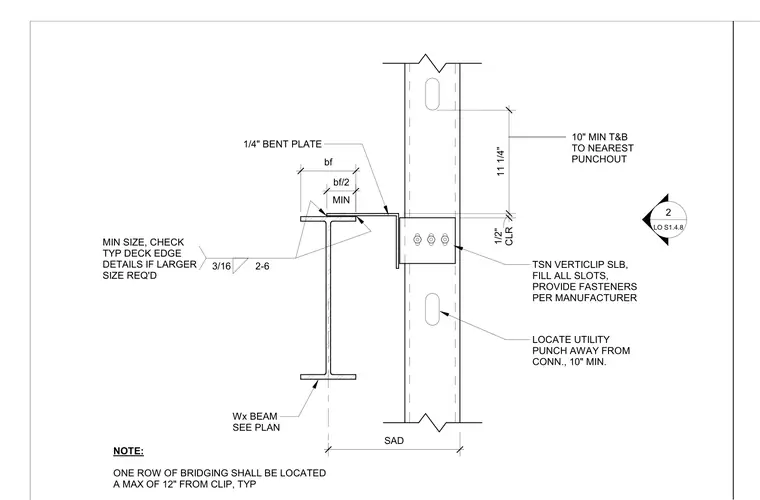

LOCATE UTILITY PUNCH AWAY FROM CONN., 10" MIN. Wx BEAM SEE PLAN TSN VERTICLIP SLB, FILL ALL SLOTS, PROVIDE FASTENERS PER MANUFACTURER SAD 10" MIN T&B TO NEAREST PUNCHOUT 1/4" BENT PLATE 2 LO S1.4.8 NOTE: ONE ROW OF BRIDGING SHALL BE LOCATED A MAX OF 12" FROM CLIP, TYP 3/16 2-6 MIN SIZE, CHECK TYP DECK EDGE DETAILS IF LARGER SIZE REQ'D 11 1/4" CLR 1/2" bf MIN bf/2
