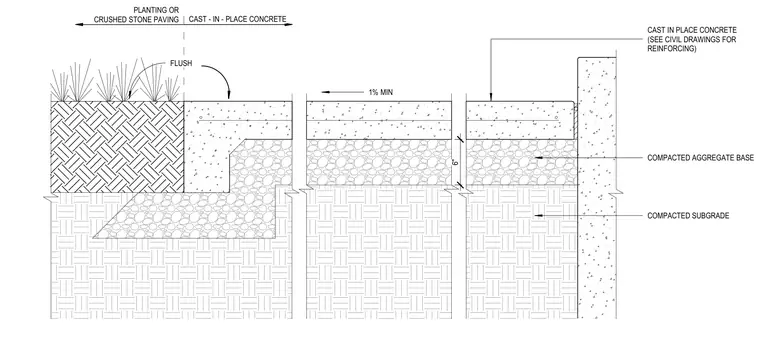

A six-inch cast-in-place concrete paving slab bears on a compacted aggregate base over compacted subgrade. The slab maintains a one percent minimum slope toward drainage. A flush planting area or crushed stone paving abuts the concrete edge. Reinforcing for the concrete slab is specified per civil drawings.
CAST IN PLACE CONCRETE (SEE CIVIL DRAWINGS FOR REINFORCING) COMPACTED AGGREGATE BASE COMPACTED SUBGRADE 1% MIN FLUSH PLANTING OR CRUSHED STONE PAVING CAST - IN - PLACE CONCRETE 6"
