Landscape · L-HF7FX

Wood Decking on Grade Footing Detail

Materials

Concrete Steel Stainless Steel Timber / Wood

Elements

Beams Decks Foundations / Footings Site / Paving Anchors / Embeds

Connections

Deck Attachment

About this detail

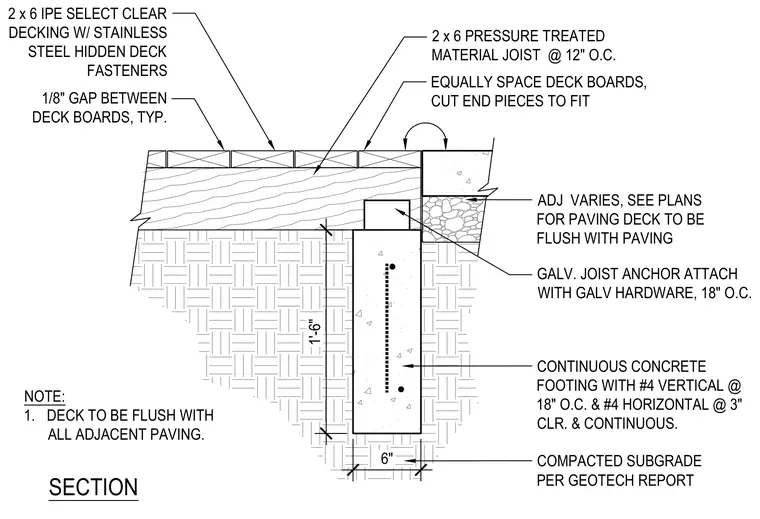

Two-by-six ipe select clear wood decking installs with stainless steel hidden deck fasteners, maintaining a one-eighth-inch gap between boards. The decking bears on two-by-six pressure-treated wood joists spaced at twelve inches on center, attached with galvanized joist anchors spaced at eighteen inches on center using galvanized hardware. The joists rest on a continuous concrete footing measuring six inches wide by one foot six inches deep, reinforced with number four vertical bars at eighteen inches on center and number four horizontal bars with three inches of clearance. The footing sits on compacted subgrade prepared in accordance with the geotechnical report, adjacent to paving that aligns flush with the finished deck surface.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
