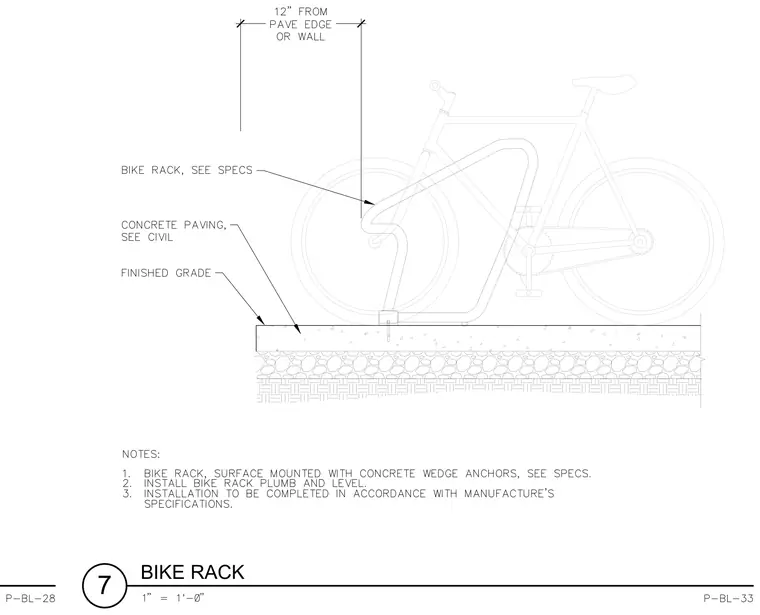

A surface-mounted bicycle rack is installed plumb and level on a concrete paving slab over finished grade, positioned twelve inches from the pavement edge or wall. The rack is anchored using concrete wedge anchors per specifications. Installation follows manufacturer requirements and coordinates with civil paving details.
