Stair Nosing Detail

Materials

Concrete Reinforced Concrete Stainless Steel

Elements

Columns Stairs Railings / Guards Floors / Slabs Expansion / Control Joints Site / Paving Anchors / Embeds Reinforcing

Connections

Embed Plate Expansion / Slip Connection

About this detail

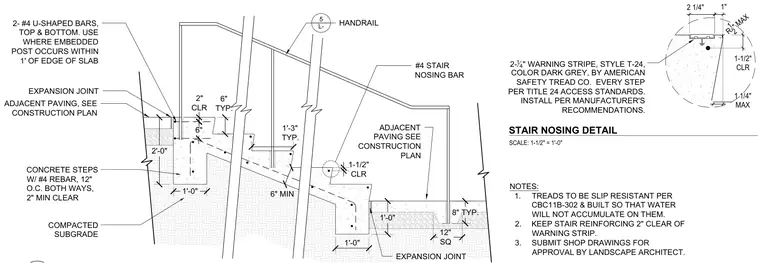

This concrete stair detail features solid concrete steps reinforced with number four rebar spaced at twelve inches on center both ways with a two inch minimum clear cover resting on compacted subgrade. The stair nosing includes a two and one-quarter inch wide dark grey warning stripe by American Safety Tread Company conforming to Title 24 access standards. An expansion joint is detailed adjacent to the paving per the construction plan, and two number four U-shaped bars are provided at the top and bottom where embedded posts occur within one foot of the edge of the slab.
