A typical bike rack anchored to a concrete footing requires a six-foot minimum clearance for bike length, a three-foot minimum clearance between bike racks, and a two-foot minimum clearance between objects. Concrete footing dimensions and rack positioning are specified with exact spatial tolerances.

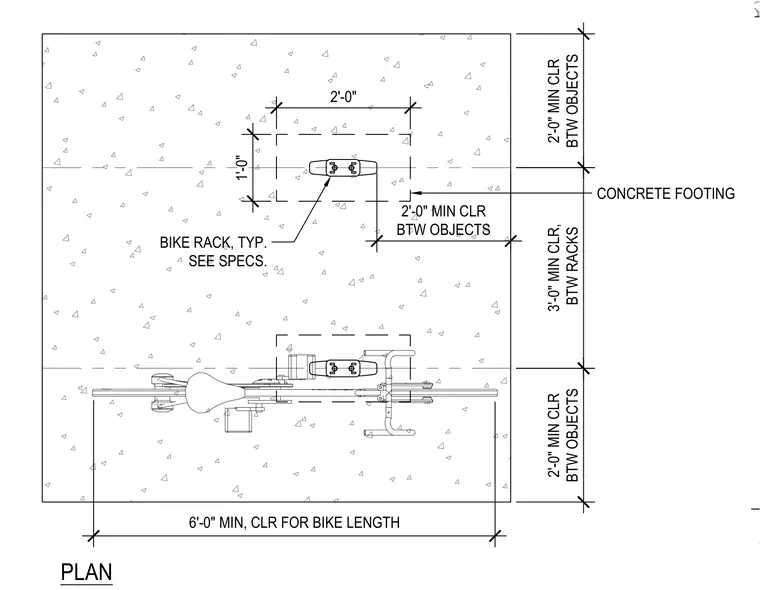

PLAN CONCRETE FOOTING 2'-0" MIN CLR BTW OBJECTS BIKE RACK, TYP. SEE SPECS. 2'-0" MIN CLR BTW OBJECTS 2'-0" MIN CLR BTW OBJECTS 3'-0" MIN CLR, BTW RACKS 6'-0" MIN, CLR FOR BIKE LENGTH 1'-0" 2'-0"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
