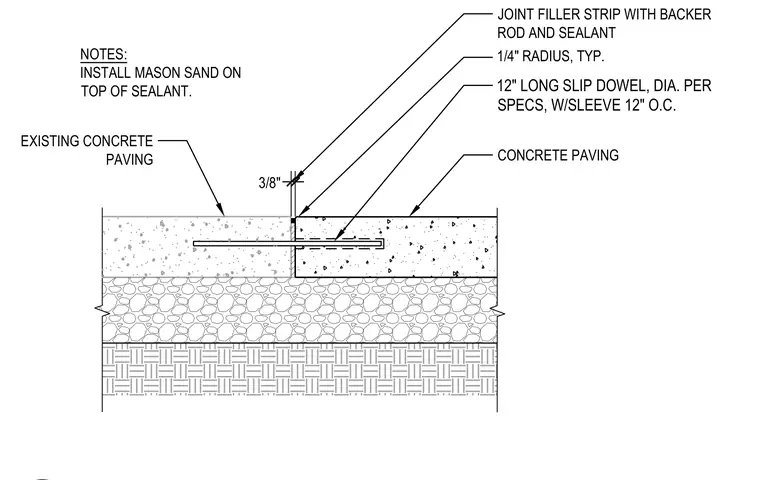

New concrete paving abuts existing concrete paving over compacted subbase layers with a three-eighths-inch joint. Twelve-inch long slip dowels with sleeves are spaced twelve inches on center across the joint per specifications. The joint is finished with a filler strip, backer rod, sealant, and a typical one-quarter-inch radius at the surface. Mason sand is installed on top of the sealant.
3/8" NOTES: INSTALL MASON SAND ON TOP OF SEALANT. JOINT FILLER STRIP WITH BACKER ROD AND SEALANT 1/4" RADIUS, TYP. 12" LONG SLIP DOWEL, DIA. PER SPECS, W/SLEEVE 12" O.C. CONCRETE PAVING EXISTING CONCRETE PAVING
