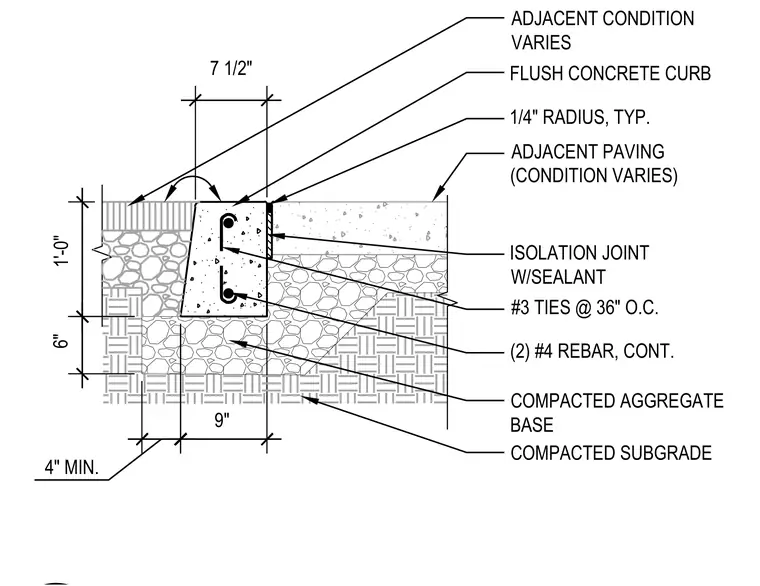

A flush concrete curb is cast in place with two continuous number four reinforcing bars and number three ties spaced at thirty-six inches on center. The concrete section features a one-quarter inch radius at the exposed edges and bears on a compacted aggregate base over a compacted subgrade. An isolation joint with sealant separates the curb from the adjacent paving where conditions vary.
1'-0" 9" 6" 4" MIN. ADJACENT CONDITION VARIES FLUSH CONCRETE CURB 1/4" RADIUS, TYP. ADJACENT PAVING (CONDITION VARIES) (2) #4 REBAR, CONT. COMPACTED AGGREGATE BASE COMPACTED SUBGRADE #3 TIES @ 36" O.C. 7 1/2" ISOLATION JOINT W/SEALANT
