The fume hood label specifies operating conditions for six-foot and eight-foot bench-mounted hoods. An arrow indicates placement where the sash allows one hundred feet per minute face velocity. The setup requires positioning according to Lab Safety Supply catalog number one hundred fifty-six.

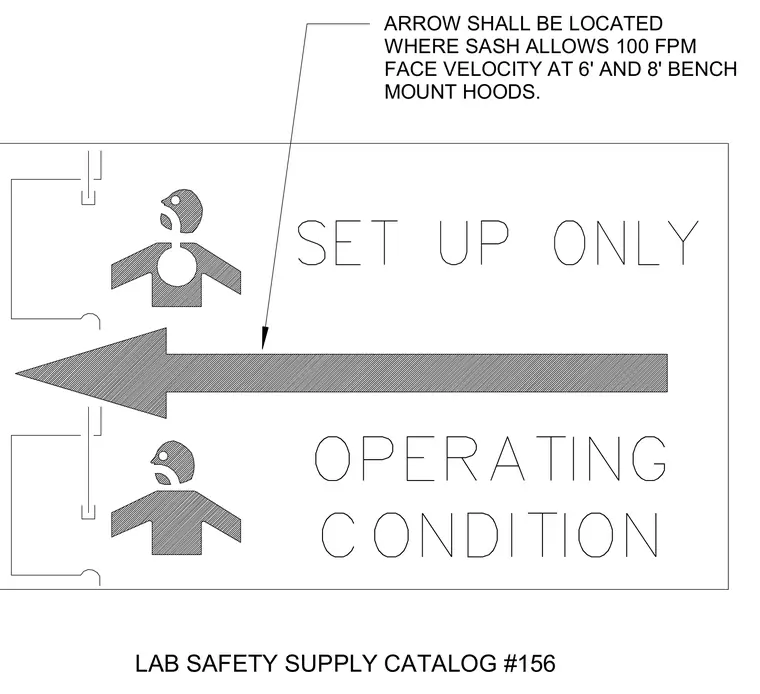

ARROW SHALL BE LOCATED WHERE SASH ALLOWS 100 FPM FACE VELOCITY AT 6' AND 8' BENCH MOUNT HOODS. CONDITION SET UP ONLY OPERATING LAB SAFETY SUPPLY CATALOG #156
