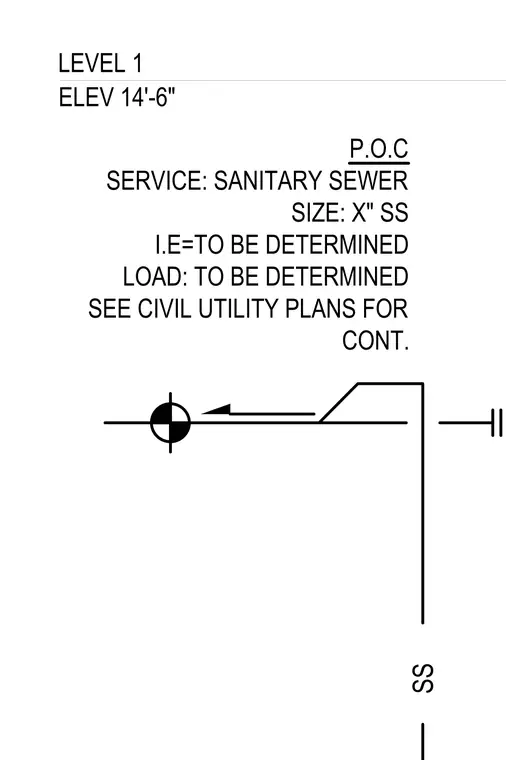

Sanitary sewer point of connection located at Level 1 elevation fourteen feet six inches. The service line is sized per the sanitary sewer specifications with an invert elevation and load to be determined. Reference civil utility plans for continuation.
SS P.O.C SERVICE: SANITARY SEWER SIZE: X" SS I.E=TO BE DETERMINED LOAD: TO BE DETERMINED SEE CIVIL UTILITY PLANS FOR CONT. LEVEL 1 ELEV 14'-6"
