Control Valve

Elements

Connections

About this detail

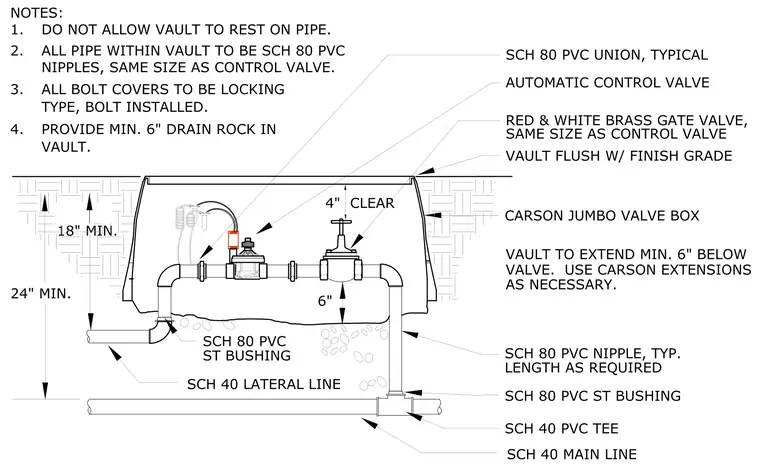

An automatic control valve and a red and white brass gate valve connect inline within a Carson jumbo valve box set flush with the finish grade. All pipe and fittings within the vault consist of schedule 80 PVC with schedule 80 PVC unions and nipples matching the valve size, maintaining a 4-inch and 6-inch clearance. The assembly transitions to schedule 40 main and lateral lines below using schedule 80 PVC street bushings and a schedule 40 PVC tee. The vault extends a minimum of 6 inches below the valve using Carson extensions as necessary, sitting above a minimum 6-inch layer of drain rock while ensuring the vault does not rest directly on the pipe. Trench burial depths require a minimum of 18 inches for lateral lines and 24 inches for main lines.
