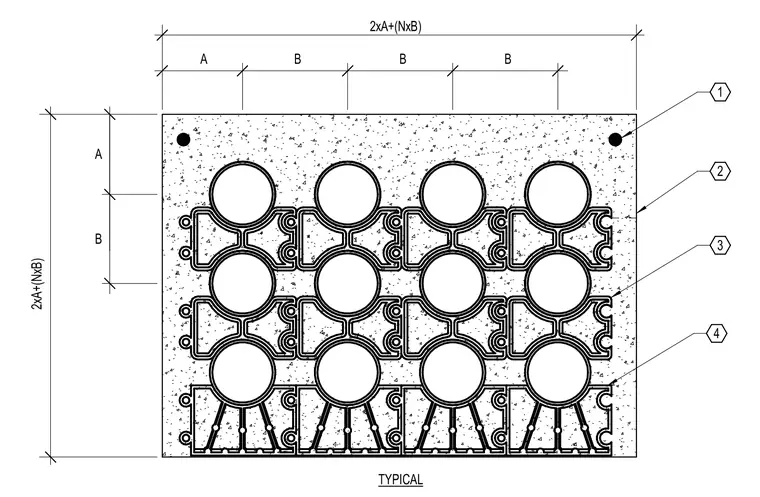

A typical paving detail of a cellular confinement grid system with modular cell openings and structural backfill or aggregate infill dimensions. The plan view defines the outer boundary spacing with dimension formulas including two times dimension A plus N times dimension B. Confinement cells are arranged in a repeating grid pattern with specified internal spacing and edge clearances. Corner reinforcing or dowels are indicated at the upper corners of the modular unit block. The overall geometric layout provides standardized installation parameters for porous paving and soil stabilization systems.
