An open wire shelving unit features five adjustable open wire shelves supported by one-inch diameter roll posts. Each shelf includes one-inch high open wire seismic ledges on all four sides. At H3 closet locations with a concrete curb, the bottom shelf is set equal to the height of the curb. Dimensions vary per floor plans with equal spacing typical between shelves.

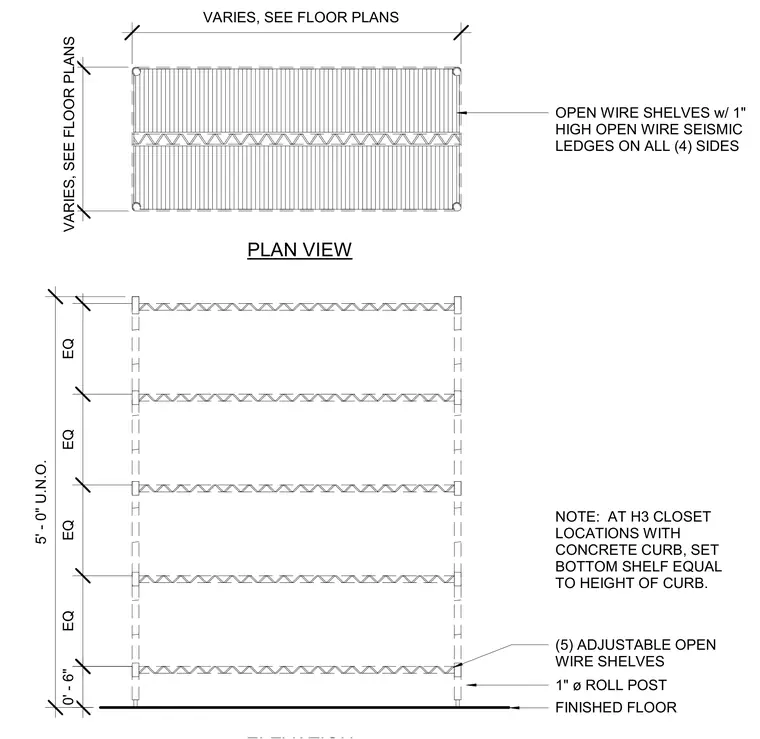

PLAN VIEW FINISHED FLOOR OPEN WIRE SHELVES w/ 1" HIGH OPEN WIRE SEISMIC LEDGES ON ALL (4) SIDES (5) ADJUSTABLE OPEN WIRE SHELVES 1" ø ROLL POST EQ EQ EQ EQ 5' - 0" U.N.O. 0' - 6" 1' - 9" 4' - 0" VARIES, SEE FLOOR PLANS VARIES, SEE FLOOR PLANS NOTE: AT H3 CLOSET LOCATIONS WITH CONCRETE CURB, SET BOTTOM SHELF EQUAL TO HEIGHT OF CURB.
