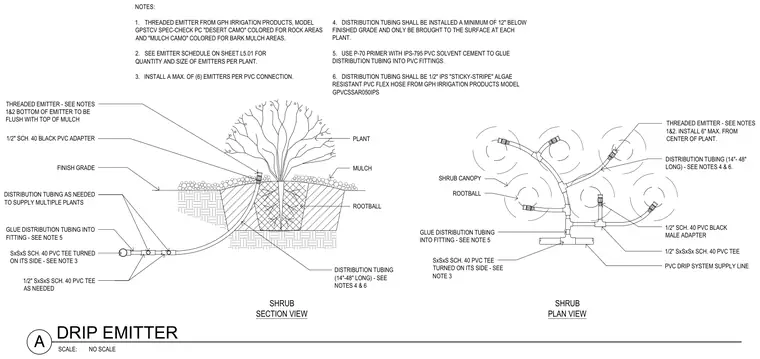

This landscape detail shows a shrub drip irrigation emitter installation in both section and plan view. The threaded emitter is connected via a half-inch schedule 40 black PVC male adapter and schedule 40 PVC tees to the PVC drip system supply line. Distribution tubing, consisting of half-inch IPS sticky-stripe algae resistant PVC flex hose between fourteen and forty-eight inches long, supplies multiple plants from a single PVC connection. The bottom of the emitter is positioned flush with the top of the mulch finish grade, installed a maximum of six inches from the center of the plant. Distribution tubing is installed a minimum of twelve inches below finished grade and brought to the surface at each plant. Joints are glued using P-70 primer with IPS-795 PVC solvent cement.
SHRUB PLAN VIEW THREADED EMITTER - SEE NOTES 1&2 BOTTOM OF EMITTER TO BE FLUSH WITH TOP OF MULCH FINISH GRADE SxSxS SCH. 40 PVC TEE TURNED ON ITS SIDE - SEE NOTE 3 PLANT MULCH ROOTBALL PVC DRIP SYSTEM SUPPLY LINE SHRUB CANOPY ROOTBALL SCALE: DRIP EMITTER NO SCALE SHRUB SECTION VIEW DISTRIBUTION TUBING (14"-48" LONG) - SEE NOTES 4 & 6 1/2" SCH. 40 BLACK PVC ADAPTER DISTRIBUTION TUBING AS NEEDED TO SUPPLY MULTIPLE PLANTS GLUE DISTRIBUTION TUBING INTO FITTING - SEE NOTE 5 1/2" SxSxS SCH. 40 PVC TEE AS NEEDED GLUE DISTRIBUTION TUBING INTO FITTING - SEE NOTE 5 SxSxS SCH. 40 PVC TEE TURNED ON ITS SIDE - SEE NOTE 3 1/2" SCH. 40 PVC BLACK MALE ADAPTER 1/2" SxSxSx SCH. 40 PVC TEE THREADED EMITTER - SEE NOTES 1&2. INSTALL 6" MAX. FROM CENTER OF PLANT. DISTRIBUTION TUBING (14"- 48" LONG) - SEE NOTES 4 & 6. NOTES: 1. THREADED EMITTER FROM GPH IRRIGATION PRODUCTS, MODEL GPSTCV SPEC-CHECK PC "DESERT CAMO" COLORED FOR ROCK AREAS AND "MULCH CAMO" COLORED FOR BARK MULCH AREAS. 2. SEE EMITTER SCHEDULE ON SHEET L5.01 FOR QUANTITY AND SIZE OF EMITTERS PER PLANT. 3. INSTALL A MAX. OF (6) EMITTERS PER PVC CONNECTION. 4. DISTRIBUTION TUBING SHALL BE INSTALLED A MINIMUM OF 12" BELOW FINISHED GRADE AND ONLY BE BROUGHT TO THE SURFACE AT EACH PLANT. 5. USE P-70 PRIMER WITH IPS-795 PVC SOLVENT CEMENT TO GLUE DISTRIBUTION TUBING INTO PVC FITTINGS. 6. DISTRIBUTION TUBING SHALL BE 1/2" IPS "STICKY-STRIPE" ALGAE RESISTANT PVC FLEX HOSE FROM GPH IRRIGATION PRODUCTS MODEL GPVCSSAR050IPS A
