Landscape · L-GQQZP

Office Millwork Corners

Units: imperial
Sheet: LO-A9.7.2
Discipline: Landscape

Materials

Composite Timber / Wood

Elements

Millwork / Casework

Text on the drawing

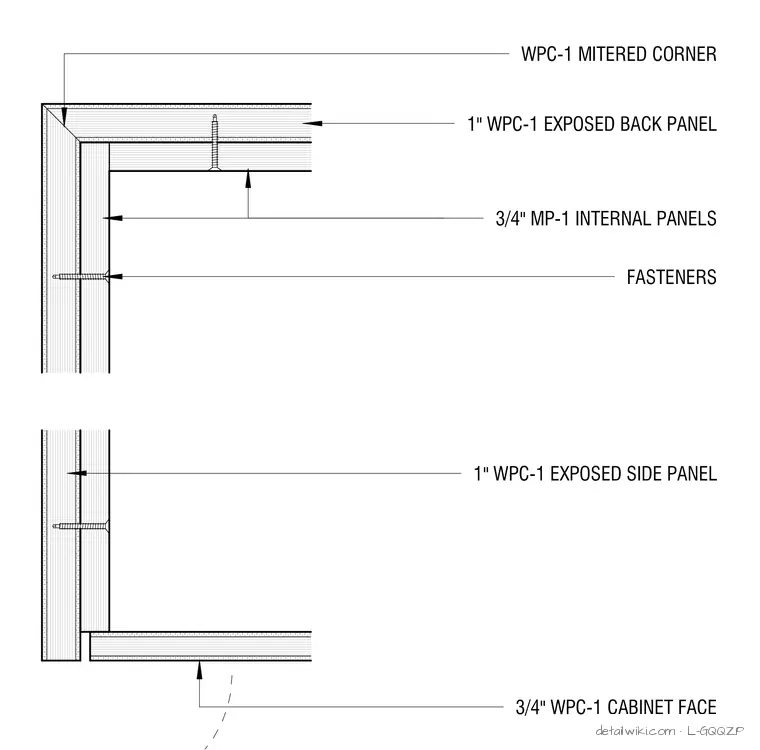

1" WPC-1 EXPOSED SIDE PANEL 3/4" MP-1 INTERNAL PANELS 3/4" WPC-1 CABINET FACE FASTENERS WPC-1 MITERED CORNER 1" WPC-1 EXPOSED BACK PANEL
