Double Glazing Jamb @ End Of Int Frame Wall

Materials

Aluminum Glass / Glazing Gypsum / Drywall Metal (misc.)Steel

Elements

Anchors / Embeds Partitions Walls Windows

About this detail

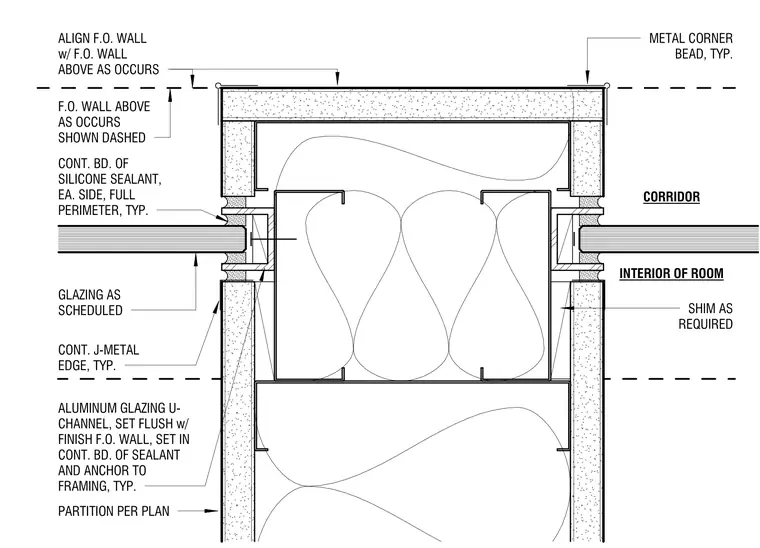

This double glazing jamb connects glass panels to the end of an interior framed wall partition using an aluminum glazing U-channel set flush with the finished face of the wall and anchored to the framing. A continuous bead of silicone sealant is applied to each side around the full perimeter of the glazing. Continuous J-metal edges finish the gypsum board corners, supplemented by a metal corner bead at the outside corner. Shims are placed as required between the partition framing and the assembly.
