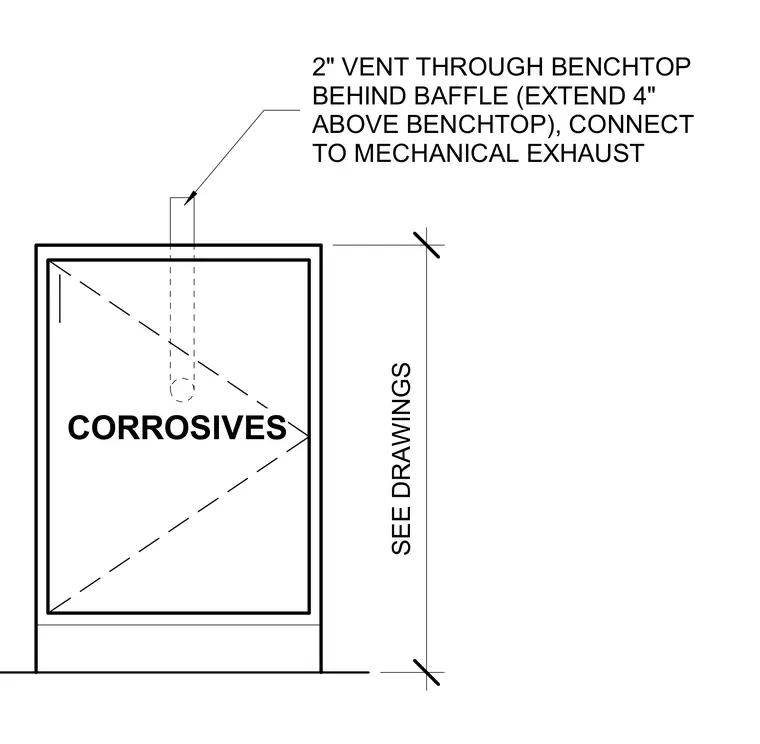

A metal corrosives base cabinet includes a two-inch vent that passes through the benchtop behind an internal baffle. The vent pipe extends four inches above the benchtop and connects to the mechanical exhaust system as specified in the drawings.
CORROSIVES 2" VENT THROUGH BENCHTOP BEHIND BAFFLE (EXTEND 4" ABOVE BENCHTOP), CONNECT TO MECHANICAL EXHAUST SEE DRAWINGS
