A circuit breaker or fused disconnect is provided as required on a 208-volt single-phase electrical supply. A Columbus Electric ET9 line voltage thermostat set at 85 degrees Fahrenheit is furnished by the mechanical contractor and wired and installed by the electrical contractor.

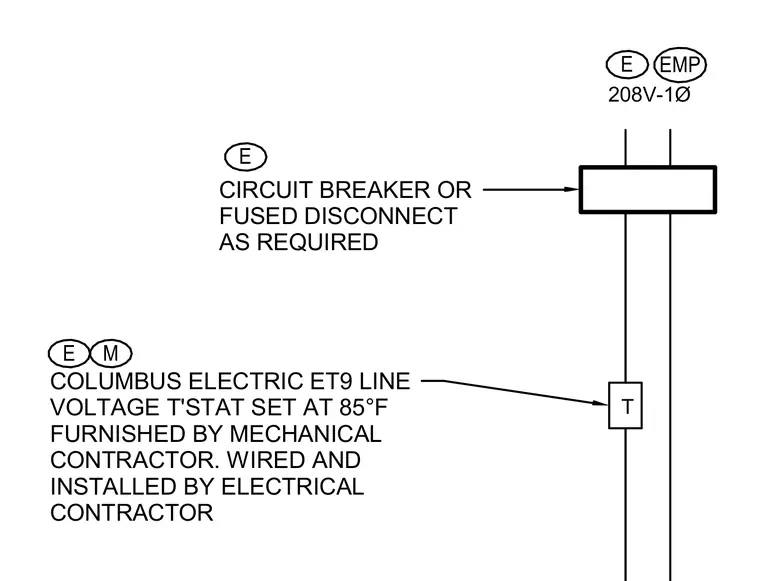

E E M E EMP CIRCUIT BREAKER OR FUSED DISCONNECT AS REQUIRED COLUMBUS ELECTRIC ET9 LINE VOLTAGE T'STAT SET AT 85°F FURNISHED BY MECHANICAL CONTRACTOR. WIRED AND INSTALLED BY ELECTRICAL CONTRACTOR 208V-1Ø T
