L-GJNEX — Wire Shelving Unit

Landscape · L-GJNEX

Wire Shelving Unit

Units: imperial
Sheet: LO-LF4.1.5
Discipline: Landscape

Materials

Metal (misc.)Steel

Elements

Columns Floors / Slabs Millwork / Casework

Text on the drawing

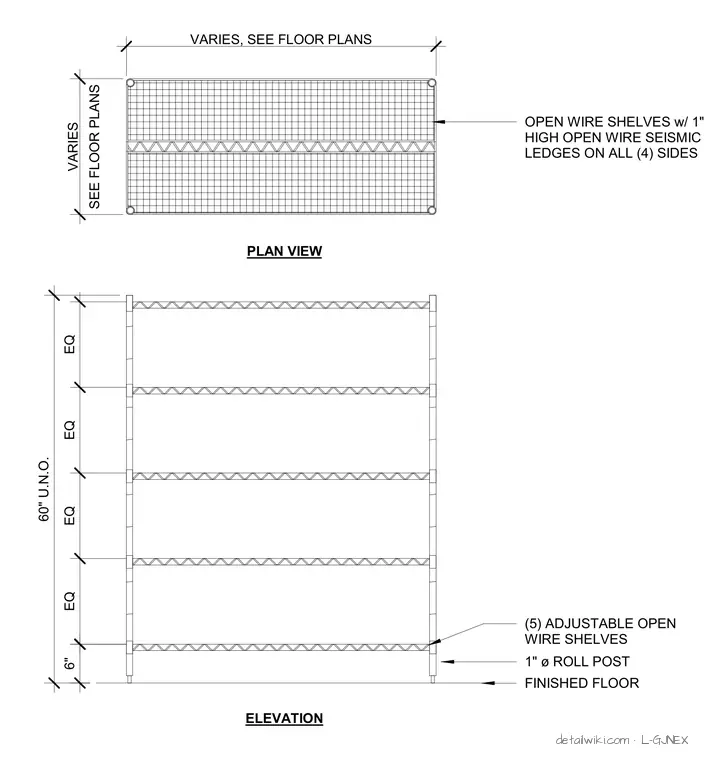

PLAN VIEW FINISHED FLOOR ELEVATION OPEN WIRE SHELVES w/ 1" HIGH OPEN WIRE SEISMIC LEDGES ON ALL (4) SIDES (5) ADJUSTABLE OPEN WIRE SHELVES 1" ø ROLL POST EQ EQ EQ EQ 60" U.N.O. 6" SEE FLOOR PLANS VARIES VARIES, SEE FLOOR PLANS
