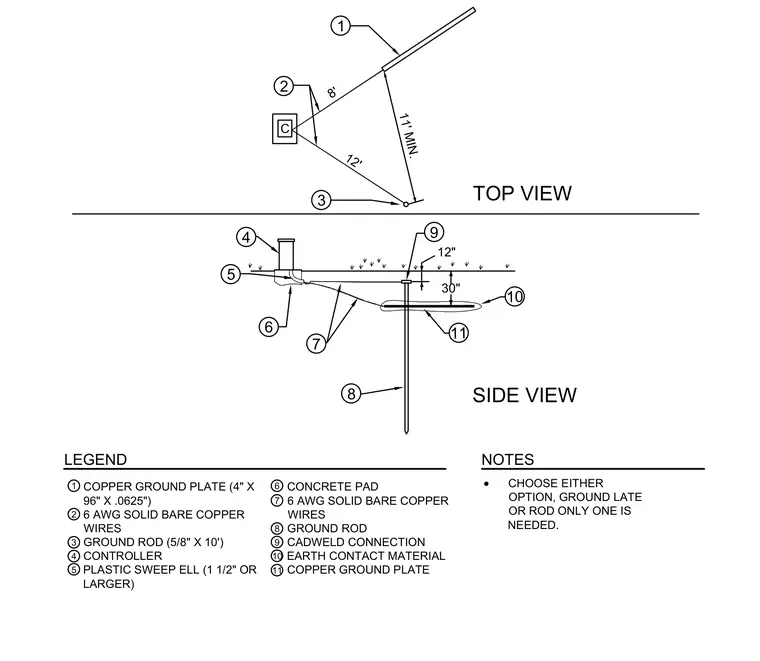

An irrigation controller is connected to an underground grounding system featuring either a copper ground plate measuring 4 inches by 96 inches by 0.0625 inches or a 5/8-inch by 10-foot ground rod. Six AWG solid bare copper wires run from the controller through a plastic sweep elbow of 1-1/2 inches or larger to the grounding element via a Cadweld connection. Earth contact material surrounds the copper ground plate, which is installed 30 inches below grade. A concrete pad sits adjacent to the controller assembly, and either the ground plate or ground rod option is chosen since only one is needed.
C 11' MIN. 8' 12' 12" 30" TOP VIEW SIDE VIEW LEGEND COPPER GROUND PLATE (4" X 96" X .0625") 6 AWG SOLID BARE COPPER WIRES GROUND ROD (5/8" X 10') CONTROLLER PLASTIC SWEEP ELL (1 1/2" OR LARGER) 1 2 3 4 5 · CHOOSE EITHER OPTION, GROUND LATE OR ROD ONLY ONE IS NEEDED. NOTES CONCRETE PAD 6 AWG SOLID BARE COPPER WIRES GROUND ROD CADWELD CONNECTION EARTH CONTACT MATERIAL COPPER GROUND PLATE 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
