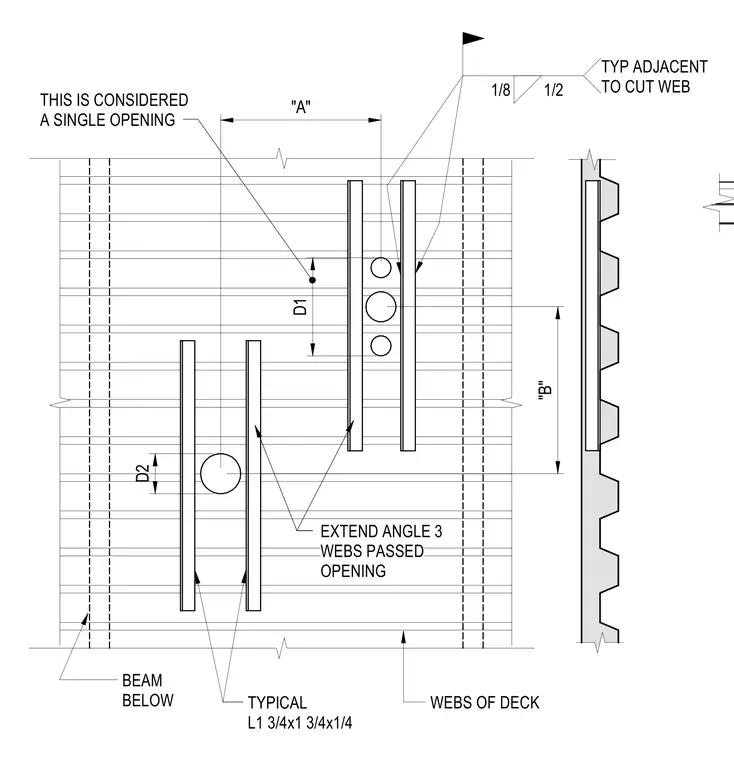

The detail shows structural steel angles positioned on top of a metal deck to reinforce or frame openings. Callouts specify angle sizes (such as L 3 3/4 x 1 3/4 x 1/4), extension requirements across web pass openings, and typical fillet welds adjacent to cut webs. Plan and sectional views indicate dimensions and relationships between the structural beams below and the deck webs.
TYPICAL L1 3/4x1 3/4x1/4 WEBS OF DECK BEAM BELOW EXTEND ANGLE 3 WEBS PASSED OPENING THIS IS CONSIDERED A SINGLE OPENING "B" "A" D2 D1 1/8 1/2 TYP ADJACENT TO CUT WEB
