Cast-In-Place Concrete Wall with Wood Topper and Paver Edge

Materials

Concrete Reinforced Concrete Steel Timber / Wood Masonry / CMU

Elements

Beams Walls Foundations / Footings Site / Paving Reinforcing

Connections

Bolted Connection

About this detail

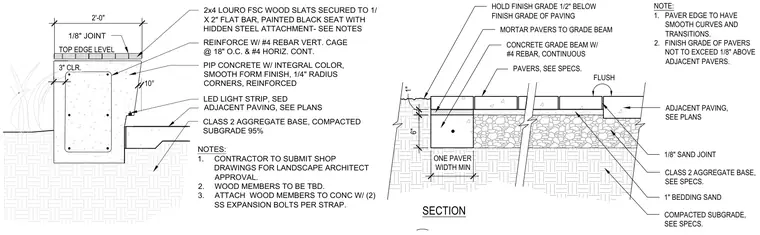

A cast-in-place concrete wall features an angled face, smooth form finish, and a top surface finished with pavers. The concrete wall is reinforced with a vertical rebar cage spaced at eighteen inches on center and continuous horizontal rebar. A wood slat seat constructed from louro FSC wood slats is secured to a painted black flat bar with hidden steel attachments and fastened to the concrete using two stainless steel expansion bolts per strap. An integrated LED light strip is recessed beneath the seat facing the adjacent paving, which consists of Class 2 aggregate base over a ninety-five percent compacted subgrade. A separate section details the paver edge condition featuring a concrete grade beam with continuous rebar, mortar-set pavers, one-inch bedding sand, an eighth-inch sand joint, and aggregate base over compacted subgrade.
