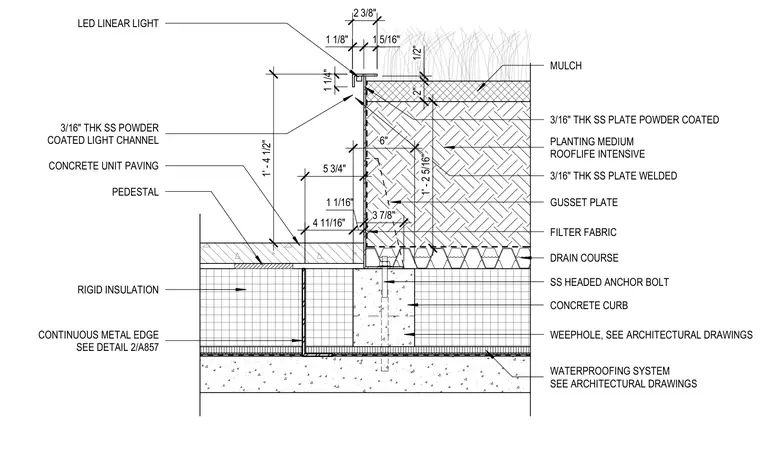

A green roof planter corner and edge assembly mounts over a concrete curb. A three-sixteenth-inch thick stainless steel powder-coated light channel accommodates an LED linear light, anchored to a vertical three-sixteenth-inch thick stainless steel plate. The planter contains a mulch layer, intensive planting medium, roof-life intensive filter fabric, and a drain course over a waterproofing system sized per architectural drawings. Adjacent to the planter, concrete unit pavers rest on pedestals over rigid insulation, separated by a continuous metal edge. A stainless steel headed anchor bolt secures the structural plate to the concrete curb, with weep holes provided through the assembly as shown.
1 1/8" 1 5/16" 3/16" THK SS PLATE POWDER COATED GUSSET PLATE SS HEADED ANCHOR BOLT CONCRETE CURB WEEPHOLE, SEE ARCHITECTURAL DRAWINGS WATERPROOFING SYSTEM SEE ARCHITECTURAL DRAWINGS CONCRETE UNIT PAVING PEDESTAL RIGID INSULATION DRAIN COURSE 3/16" THK SS PLATE WELDED MULCH PLANTING MEDIUM ROOFLIFE INTENSIVE FILTER FABRIC 2" 1/2" 1' - 2 5/16" CONTINUOUS METAL EDGE SEE DETAIL 2/A857 LED LINEAR LIGHT 3/16" THK SS POWDER COATED LIGHT CHANNEL 1 1/4" 2 3/8" 3 7/8" 1' - 4 1/2" 4 11/16" 1 1/16" 6" 5 3/4"
