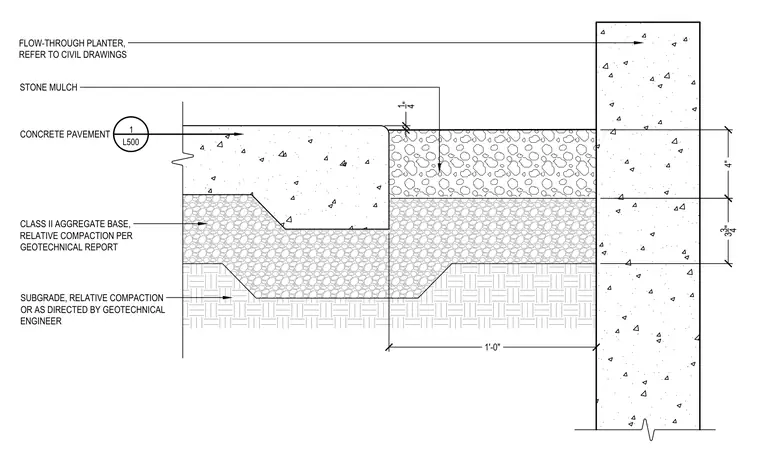

Concrete pavement terminates against a stone mulch bed bounded by a flow-through concrete planter wall. The pavement rests on a Class II aggregate base over a prepared subgrade compacted per the geotechnical report. Stone mulch fills the maintenance edge to a depth of four inches over the aggregate base. The flow-through planter wall is detailed on civil drawings.
STONE MULCH CLASS II AGGREGATE BASE, RELATIVE COMPACTION PER GEOTECHNICAL REPORT SUBGRADE, RELATIVE COMPACTION OR AS DIRECTED BY GEOTECHNICAL ENGINEER FLOW-THROUGH PLANTER, REFER TO CIVIL DRAWINGS 4" 3 3 4 " 1'-0" 1 L500 CONCRETE PAVEMENT 1 4 "
