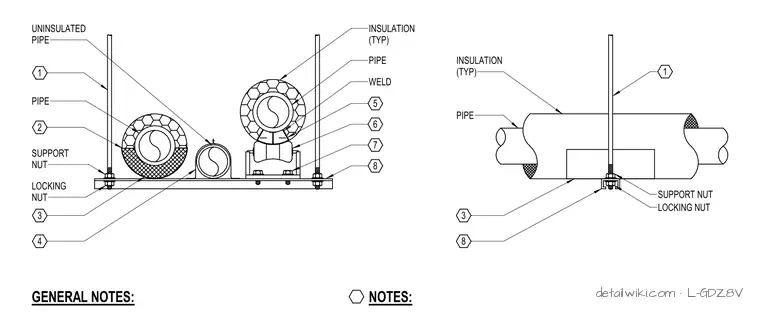

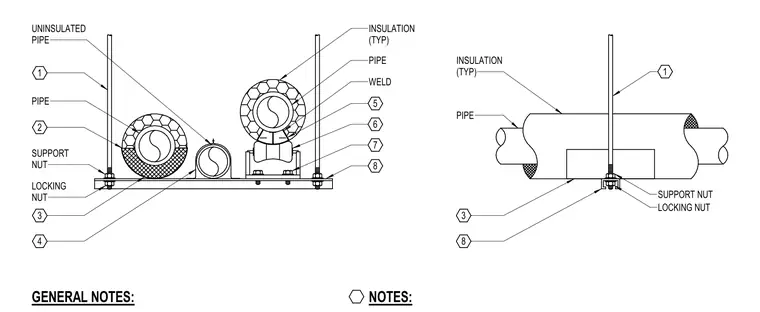

L-GDZ8V — Pipe Support Trapeze

Landscape · L-GDZ8V

Pipe Support Trapeze

Units: imperial
Sheet: LO-P5.0.3
Discipline: Landscape

Materials

Metal (misc.)Steel

Elements

Anchors / Embeds Connections / Plates Insulation Waterproofing / Flashing

Connections

Bolted Connection Welded Connection

Text on the drawing

SUPPORT NUT LOCKING NUT PIPE WELD PIPE INSULATION (TYP) UNINSULATED PIPE 5 6 8 7 1 3 NOTES: GENERAL NOTES: 4 2 1 PIPE SUPPORT NUT LOCKING NUT 3 8 INSULATION (TYP)

Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
