Pedestrian pavers are set in a three-quarter-inch mortar setting bed with one-eighth-inch fortified sand joints over a five-inch concrete slab reinforced with number four rebar at twelve inches on center both ways. The concrete slab rests on a five-inch compacted class two aggregate base per geotech over a compacted subgrade. The finish grade of the pavers is held one-half inch below the finish grade of adjacent paving. Paver edges require smooth curves and transitions, and the finish grade of pavers must not exceed one-eighth inch above adjacent pavers.

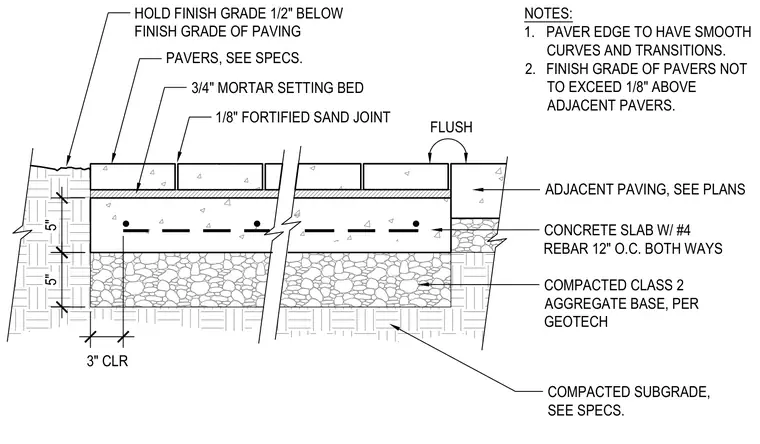

FLUSH NOTES: 1. PAVER EDGE TO HAVE SMOOTH CURVES AND TRANSITIONS. 2. FINISH GRADE OF PAVERS NOT TO EXCEED 1/8" ABOVE ADJACENT PAVERS. COMPACTED SUBGRADE, SEE SPECS. COMPACTED CLASS 2 AGGREGATE BASE, PER GEOTECH ADJACENT PAVING, SEE PLANS CONCRETE SLAB W/ #4 REBAR 12" O.C. BOTH WAYS PAVERS, SEE SPECS. 1/8" FORTIFIED SAND JOINT 3/4" MORTAR SETTING BED HOLD FINISH GRADE 1/2" BELOW FINISH GRADE OF PAVING 5" 5" 3" CLR
