Control Valve Drip Circuit Assembly

Materials

Elements

Waterproofing / Flashing Connections / Plates

About this detail

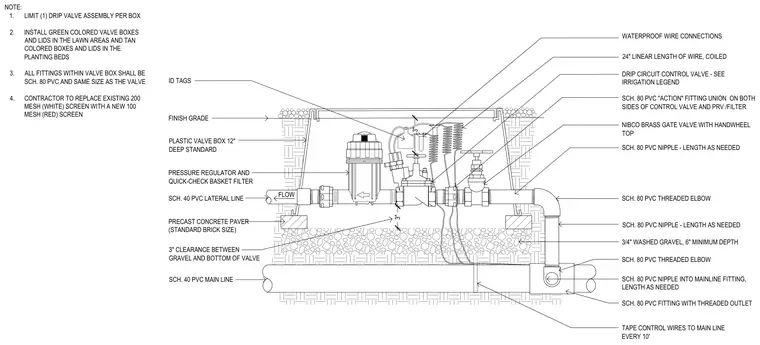

An irrigation drip circuit control valve is housed within a twelve-inch deep standard plastic valve box resting on a six-inch minimum depth bed of three-quarter-inch washed gravel with precast concrete pavers supporting the assembly. The unit connects to a schedule 40 polyvinyl chloride main line via schedule 80 polyvinyl chloride fittings, threaded elbows, and nipples, with a NIBCO brass gate valve and a pressure regulator with a quick-check basket filter. Schedule 80 polyvinyl chloride action fitting unions are installed on both sides of the control valve and the pressure-regulating valve filter for maintenance access. Waterproof wire connections join coiled control wires, which are taped to the main line every ten feet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
