Green Roof Soil System Assembly

Elements

Roofs Waterproofing / Flashing Drainage Roof / Floor Openings

About this detail

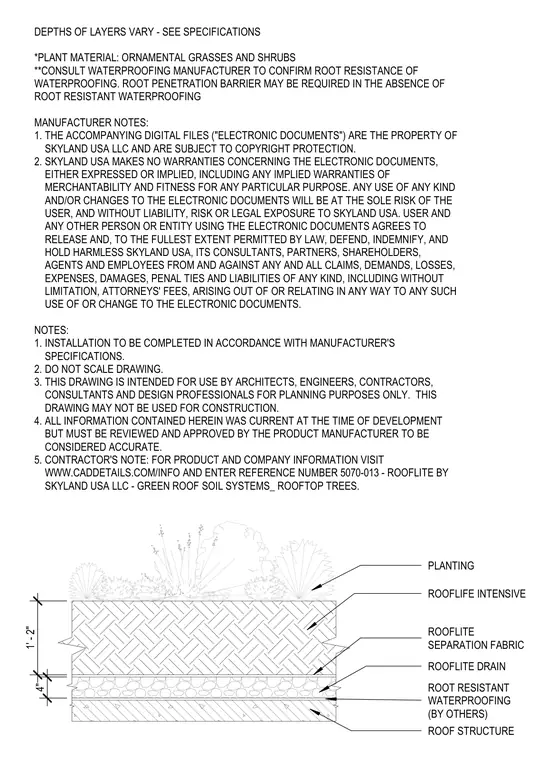

Depths of layers vary per project specifications and include ornamental grasses and shrubs within the planting layer. The assembly consists of an intensive soil mix sitting atop a separation fabric, followed by a drainage layer over root-resistant waterproofing on the structural roof deck. Waterproofing must be confirmed for root resistance by the manufacturer, and a root penetration barrier may be required where standard waterproofing is used. Installation is to be completed strictly in accordance with manufacturer specifications.

DEPTHS OF LAYERS VARY - SEE SPECIFICATIONS *PLANT MATERIAL: ORNAMENTAL GRASSES AND SHRUBS **CONSULT WATERPROOFING MANUFACTURER TO CONFIRM ROOT RESISTANCE OF WATERPROOFING. ROOT PENETRATION BARRIER MAY BE REQUIRED IN THE ABSENCE OF ROOT RESISTANT WATERPROOFING MANUFACTURER NOTES: 1. THE ACCOMPANYING DIGITAL FILES ("ELECTRONIC DOCUMENTS") ARE THE PROPERTY OF SKYLAND USA LLC AND ARE SUBJECT TO COPYRIGHT PROTECTION. 2. SKYLAND USA MAKES NO WARRANTIES CONCERNING THE ELECTRONIC DOCUMENTS, EITHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR ANY PARTICULAR PURPOSE. ANY USE OF ANY KIND AND/OR CHANGES TO THE ELECTRONIC DOCUMENTS WILL BE AT THE SOLE RISK OF THE USER, AND WITHOUT LIABILITY, RISK OR LEGAL EXPOSURE TO SKYLAND USA. USER AND ANY OTHER PERSON OR ENTITY USING THE ELECTRONIC DOCUMENTS AGREES TO RELEASE AND, TO THE FULLEST EXTENT PERMITTED BY LAW, DEFEND, INDEMNIFY, AND HOLD HARMLESS SKYLAND USA, ITS CONSULTANTS, PARTNERS, SHAREHOLDERS, AGENTS AND EMPLOYEES FROM AND AGAINST ANY AND ALL CLAIMS, DEMANDS, LOSSES, EXPENSES, DAMAGES, PENAL TIES AND LIABILITIES OF ANY KIND, INCLUDING WITHOUT LIMITATION, ATTORNEYS' FEES, ARISING OUT OF OR RELATING IN ANY WAY TO ANY SUCH USE OF OR CHANGE TO THE ELECTRONIC DOCUMENTS. NOTES: 1. INSTALLATION TO BE COMPLETED IN ACCORDANCE WITH MANUFACTURER'S SPECIFICATIONS. 2. DO NOT SCALE DRAWING. 3. THIS DRAWING IS INTENDED FOR USE BY ARCHITECTS, ENGINEERS, CONTRACTORS, CONSULTANTS AND DESIGN PROFESSIONALS FOR PLANNING PURPOSES ONLY. THIS DRAWING MAY NOT BE USED FOR CONSTRUCTION. 4. ALL INFORMATION CONTAINED HEREIN WAS CURRENT AT THE TIME OF DEVELOPMENT BUT MUST BE REVIEWED AND APPROVED BY THE PRODUCT MANUFACTURER TO BE CONSIDERED ACCURATE. 5. CONTRACTOR'S NOTE: FOR PRODUCT AND COMPANY INFORMATION VISIT WWW.CADDETAILS.COM/INFO AND ENTER REFERENCE NUMBER 5070-013 - ROOFLITE BY SKYLAND USA LLC - GREEN ROOF SOIL SYSTEMS_ ROOFTOP TREES. ROOF STRUCTURE ROOT RESISTANT WATERPROOFING (BY OTHERS) ROOFLITE DRAIN ROOFLITE SEPARATION FABRIC ROOFLIFE INTENSIVE PLANTING 1' - 2" 4"

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
