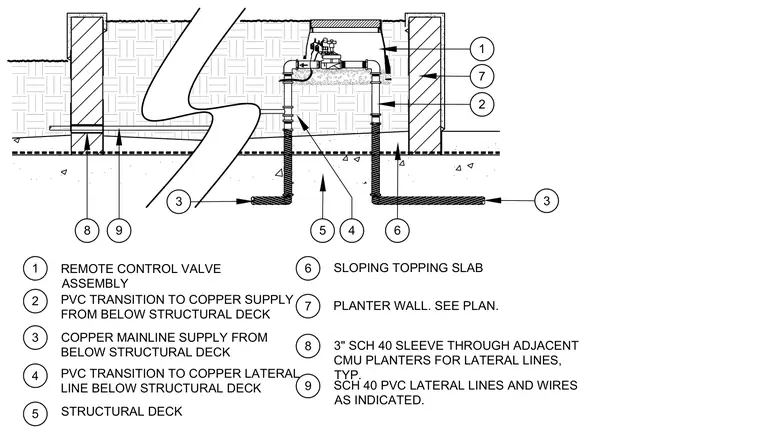

A remote control valve assembly is housed within a planter with concrete masonry unit walls and a sloping topping slab over a structural deck. A copper mainline supply and Schedule 40 PVC lateral lines and wires extend from below the structural deck, featuring PVC to copper transitions. A three-inch Schedule 40 PVC sleeve passes through the adjacent CMU planter wall for lateral lines, sized per plan.
2 1 3 4 2 7 6 REMOTE CONTROL VALVE ASSEMBLY PVC TRANSITION TO COPPER SUPPLY FROM BELOW STRUCTURAL DECK COPPER MAINLINE SUPPLY FROM BELOW STRUCTURAL DECK PVC TRANSITION TO COPPER LATERAL LINE BELOW STRUCTURAL DECK SLOPING TOPPING SLAB PLANTER WALL. SEE PLAN. 1 8 3" SCH 40 SLEEVE THROUGH ADJACENT CMU PLANTERS FOR LATERAL LINES, TYP. 9 SCH 40 PVC LATERAL LINES AND WIRES AS INDICATED. 5 STRUCTURAL DECK 4 5 A1 3 6 7 3 8 9
