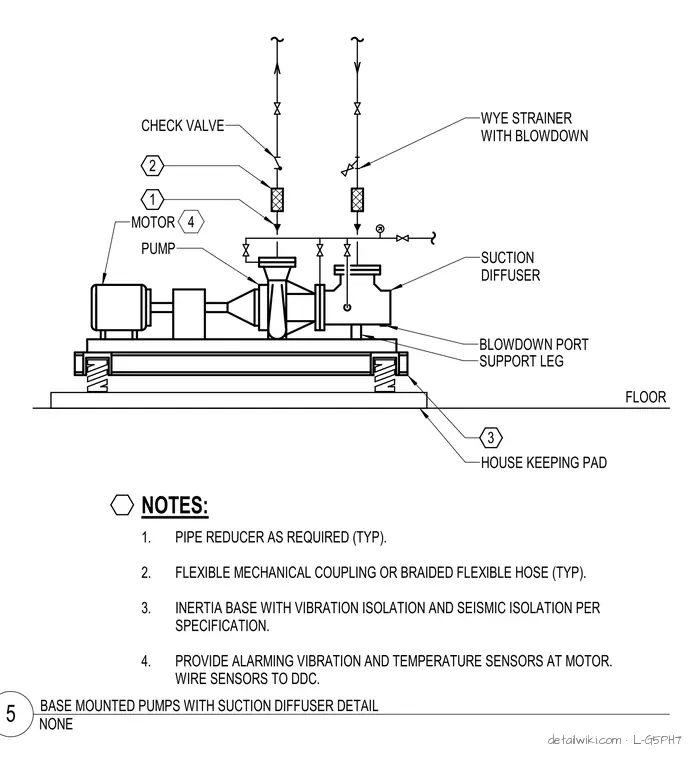

The assembly consists of a base mounted pump and motor mounted on an inertia base equipped with vibration isolation and seismic isolation per specification, resting on a concrete housekeeping pad. The piping configuration incorporates a suction diffuser supported by a leg and a wye strainer with a blowdown port on the suction side, alongside pipe reducers and flexible mechanical couplings or braided flexible hoses typically on the connections. A check valve is installed on the discharge line, and alarming vibration and temperature sensors are provided at the motor with wiring to the direct digital control system.
CHECK VALVE PUMP HOUSE KEEPING PAD FLOOR 1. PIPE REDUCER AS REQUIRED (TYP). 2. FLEXIBLE MECHANICAL COUPLING OR BRAIDED FLEXIBLE HOSE (TYP). 3. INERTIA BASE WITH VIBRATION ISOLATION AND SEISMIC ISOLATION PER SPECIFICATION. 4. PROVIDE ALARMING VIBRATION AND TEMPERATURE SENSORS AT MOTOR. WIRE SENSORS TO DDC. NOTES: 1 2 3 WYE STRAINER WITH BLOWDOWN SUCTION DIFFUSER SUPPORT LEG MOTOR 4 BLOWDOWN PORT NONE 5 BASE MOUNTED PUMPS WITH SUCTION DIFFUSER DETAIL
