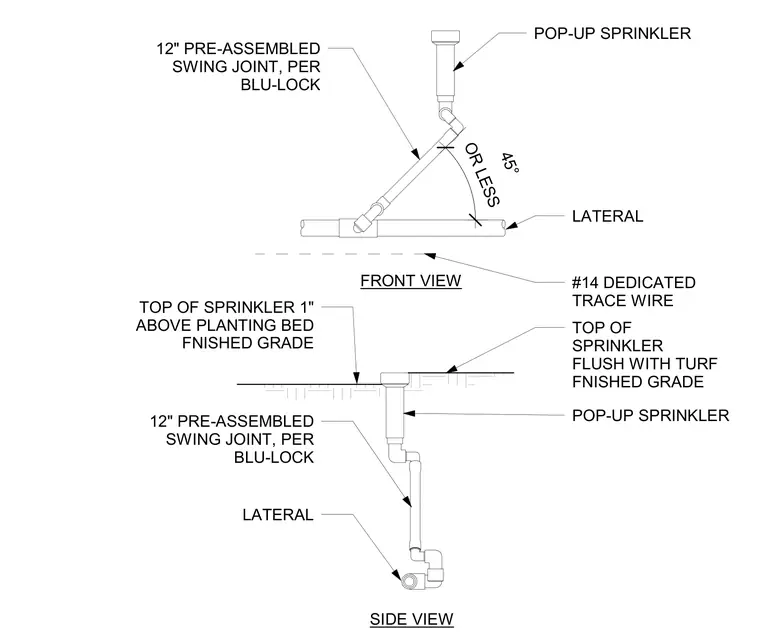

A pop-up sprinkler connects to a lateral pipe through a twelve-inch pre-assembled swing joint per Blu-Lock. In planting beds, the top of the sprinkler is positioned one inch above the finished grade. In turf areas, the top of the sprinkler is installed flush with the finished grade. A number fourteen dedicated trace wire runs alongside or with the lateral piping.
FRONT VIEW SIDE VIEW 12" PRE-ASSEMBLED SWING JOINT, PER BLU-LOCK TOP OF SPRINKLER 1" ABOVE PLANTING BED FNISHED GRADE 12" PRE-ASSEMBLED SWING JOINT, PER BLU-LOCK POP-UP SPRINKLER LATERAL TOP OF SPRINKLER FLUSH WITH TURF FNISHED GRADE POP-UP SPRINKLER LATERAL #14 DEDICATED TRACE WIRE OR LESS 45°
