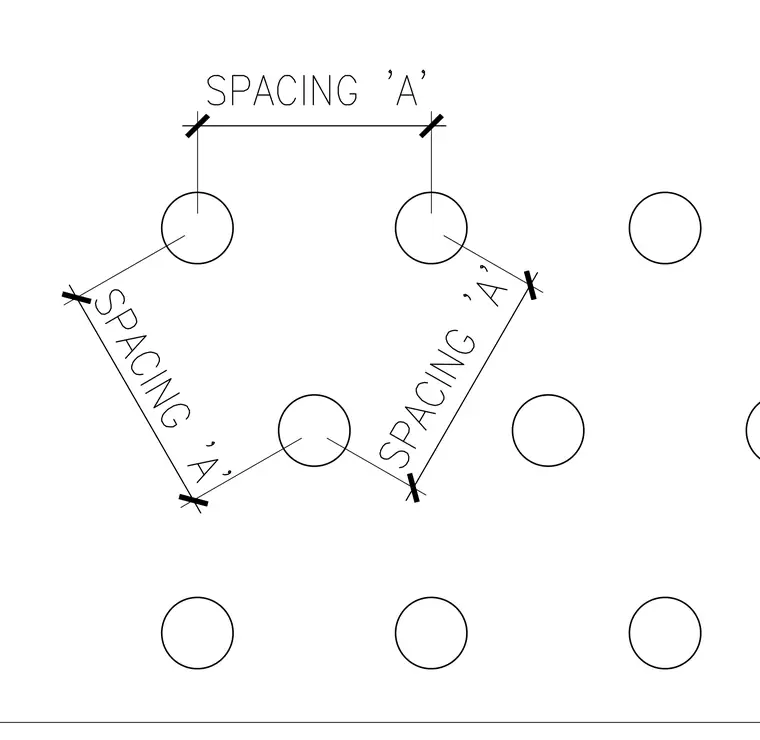

A staggered geometric arrangement of circular elements features repeating spacing designated as Spacing 'A' between adjacent centers. Dimension lines with tick marks indicate uniform spacing along both horizontal and diagonal axes of the pattern.
