Concrete paving slabs meet across a three-eighths-inch isolation joint doweled with a sleeve at eighteen inches on center. The joint incorporates a filler strip, backer rod, and sealant with a typical one-quarter-inch radius at the top edge. Mason sand is installed on top of the sealant before the sealant cures. The paving rests on a graded base course as sized per plan.

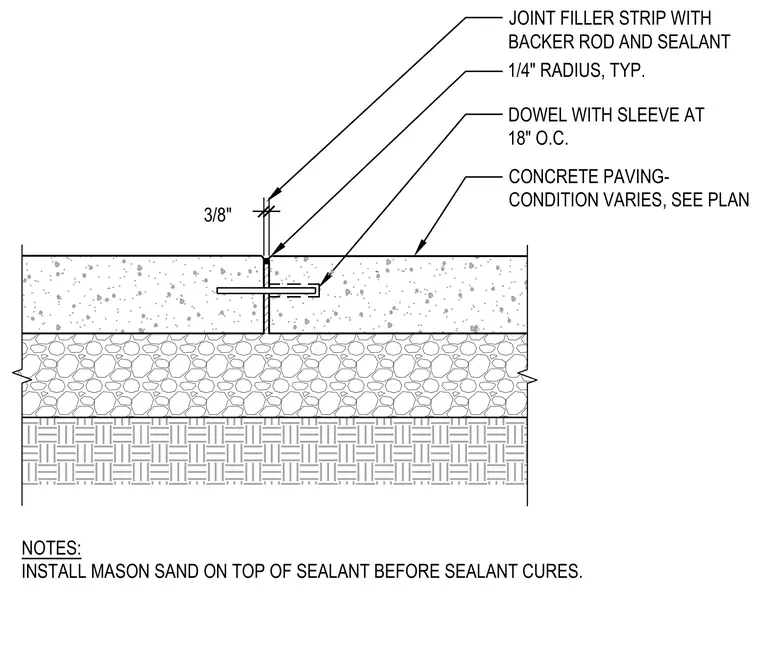

NOTES: INSTALL MASON SAND ON TOP OF SEALANT BEFORE SEALANT CURES. JOINT FILLER STRIP WITH BACKER ROD AND SEALANT 1/4" RADIUS, TYP. DOWEL WITH SLEEVE AT 18" O.C. CONCRETE PAVING- CONDITION VARIES, SEE PLAN 3/8"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
