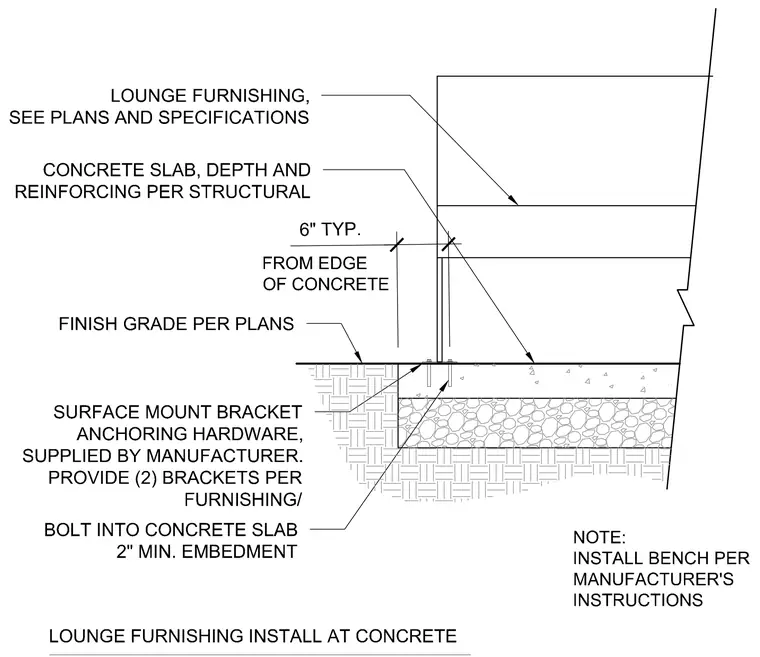

A lounge furnishing is secured to a concrete slab using manufacturer-supplied surface-mount brackets and anchoring hardware. Two brackets are provided per furnishing and bolted directly into the concrete slab with a minimum two-inch embedment. The anchoring location is maintained at a typical six-inch offset from the edge of the concrete. Finish grade transitions are established per plan requirements.
LOUNGE FURNISHING, SEE PLANS AND SPECIFICATIONS CONCRETE SLAB, DEPTH AND REINFORCING PER STRUCTURAL SURFACE MOUNT BRACKET ANCHORING HARDWARE, SUPPLIED BY MANUFACTURER. PROVIDE (2) BRACKETS PER FURNISHING/ BOLT INTO CONCRETE SLAB 2" MIN. EMBEDMENT NOTE: INSTALL BENCH PER MANUFACTURER'S INSTRUCTIONS 6" TYP. FROM EDGE OF CONCRETE FINISH GRADE PER PLANS LOUNGE FURNISHING INSTALL AT CONCRETE
