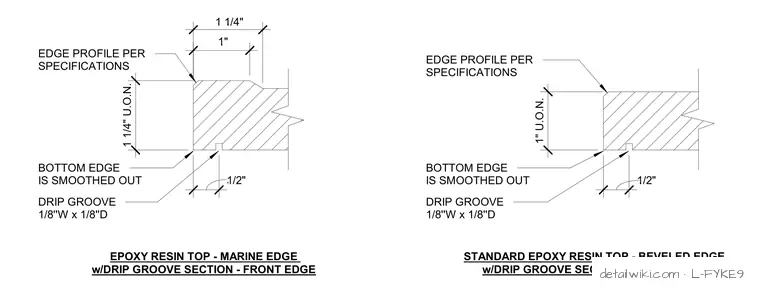

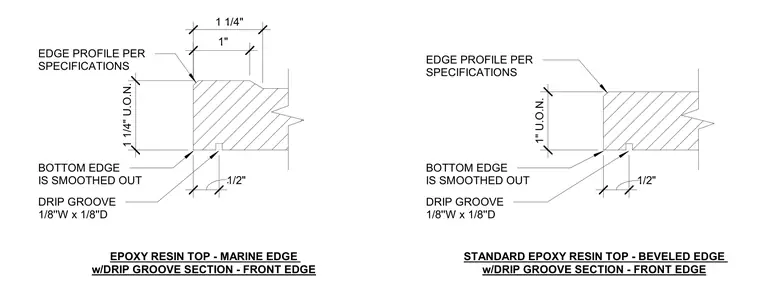

The assembly consists of an epoxy resin countertop featuring a machined drip groove measuring one-eighth inch wide by one-eighth inch deep located one-half inch in from the front edge along the smoothed bottom surface. The front edge profile follows project specifications, with options including a standard top with a beveled edge or a marine edge design. Thickness dimensions are specified as one and one-quarter inches or one inch unless otherwise noted, with specific dimensions mapping the 1-inch top surface offset and edge transitions.
STANDARD EPOXY RESIN TOP - BEVELED EDGE w/DRIP GROOVE SECTION - FRONT EDGE EPOXY RESIN TOP - MARINE EDGE w/DRIP GROOVE SECTION - FRONT EDGE EDGE PROFILE PER SPECIFICATIONS BOTTOM EDGE IS SMOOTHED OUT DRIP GROOVE 1/8''W x 1/8''D EDGE PROFILE PER SPECIFICATIONS BOTTOM EDGE IS SMOOTHED OUT DRIP GROOVE 1/8''W x 1/8''D 1 1/4" U.O.N. . . 1 1/4" 1" . 1/2" . 1" U.O.N. 1/2"
